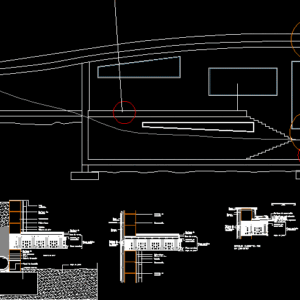

Construction Details -clipped gable – Detail

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

window detail, detail drained forged shoe, my cover detail, cover detail felix, faxed detail between the first the second floor, cement mortar, polyurethane, air chamber, tabicon, termoarcilla, ceramic piece, compression mortar, cement mortar, sand layer, prestressed ceramic plate, plaster layer, air chamber, asphalt cloth, running shoe, cement mortar, concrete channel, asphalt cloth, gravel, draining pipe, cement mortar, polyurethane, air chamber, tabicon, termoarcilla, plaster layer, ceramic piece, compression mortar, cement mortar, termoarcilla, sand layer, prestressed ceramic plate, polyurethane, anchoring system of the ventilated facade, air chamber, ceramic piece, cement mortar, termoarcilla, window carpentry, polyurethane, air chamber, ceramic piece, flashings, plaster layer, mortar layer lightened, compression mortar, prestressed ceramic plate, polyurethane, anchoring system of the ventilated facade, air chamber, ceramic piece, geotextile sheet, extruded polystyrene, compression mortar, asphalt sheet

Raw text data extracted from CAD file:

detalle ventana detalle zapata forjado drenante detalle cubierta mio (el pekeño) detalle cubierta felix detalle de faxada entre la primera y la segunda planta Mortero de cemento Poliuretano Cámara de aire Tabicón Termoarcilla Pieza ceramica Mortero de compresión Mortero de cemento Capa de arena Placa cerámica pretensada Capa de yeso Cámara de aire Tela asfáltica Zapata corrida Mortero de cemento Canal de hormigón Tela asfáltica Grava Tuberia drenante Mortero de cemento Mortero de cemento Poliuretano Cámara de aire Tabicón Termoarcilla Capa de yeso Pieza ceramica Mortero de compresión Mortero de cemento Termoarcilla Capa de arena Placa cerámica pretensada Poliuretano Sistema de anclaje de la fachada ventilada Camara de aire Pieza cerámica Mortero de cemento Termoarcilla Carpinteria de la ventana Poliuretano Camara de aire Pieza cerámica Tapajuntas Capa de yeso Capa de mortero aligerado (2% pendiente) Mortero de compresión Placa cerámica pretensada Poliuretano Sistema de anclaje de la fachada ventilada Camara de aire Pieza cerámica Lamina geotextil Poliestireno extrusionado Mortero de compresión Lamina asfaltica

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, construction, dach, dalle, DETAIL, details, DWG, escadas, escaliers, gable, lajes, mezanino, mezzanine, platte, reservoir, roof, slab, stair, telhado, toiture, treppe
