Constructive Details Of Stair DWG Detail for AutoCAD

Constructive Details Of Stair DWG Detail for AutoCAD

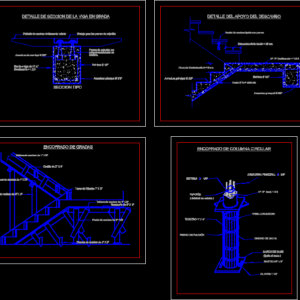

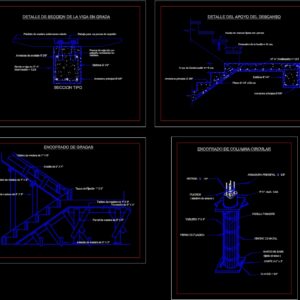

STAIR DETAILS ; ARMED OF LOCK AND COLUMN

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

section type, main armor, locking bolts, rung molded in, wood., double wooden step, Stirrups, nerve beam, dosage, recess for retaining bolts, mounting armor, detail of section of the beam in step, detail of rest support, iron cm, main armor, height of riser cm., dimension of the footprint cm., pinned wood footprint, dosage, main armor, Stirrups, formwork, wooden strut, wood board, fixing lugs, crossbar, wooden strut, wood board, Rib of, wood board, wooden stakes, pin rod, matal belt, base frame, down, Nails, h ° a ° docif., main armor, stirrup, fixation, Mooring wire, board, fixing bolt, circular column formwork

Raw text data extracted from CAD file:

SECCION TIPO Armadura principal d 3/8" Pernos de sujeción por peldaño moldeados en madera. Peldaño de madera doblemente volado Estribos d 1/4" Nervio o viga de H° A° Dosificación = 1:2:3 Rebaje para los pernos de sujeción Armadura de montaje d 3/8" DETALLE DE SECCION DE LA VIGA EN GRADA DETALLE DEL APOYO DEL DESCANSO Fierro d 1/4" c/20 cm Armadura principal d 3/8" Altura de Contrahuella h=15 cm. Dimension de la huella = 25 cm. Huella de madera fijada con pernos H° A° Dosificación = 1:2:3 Armadura principal d 3/8" Estribos d 1/4" ENCOFRADO DE GRADAS Puntal de madera de 3" X 3" Tablero de madera de 1" X 6" Tacos de Fijación 1" X 2" Travesaño de 3" X 4" Puntal de madera de 3" X 3" Tablero de madera de 1" X 6" Costilla de 2" X 4" Tablero de madera de 1" X 8" Estacas de madera de 2" X 2" VARILLA PASADOR CINCHO DE MATAL MARCO DE BASE (fijado al suelo ) CASTILLA1" x 3" CLAVOS 1 1/2" Hº Aº docif. 1:2:3 ARMADURA PRINCIPAL 0 3/8" ESTRIBO 0 1/4" FIJACIÓN ( alambre de amarre ) TABLERO 1" X 4" PERNO DE FIJACIÓN ENCOFRADO DE COLUMNA CIRCULAR

Language	Spanish
Drawing Type	Detail
Category	Stairways
Additional Screenshots
File Type	dwg
Materials	Wood
Measurement Units
Footprint Area
Building Features
Tags	armed, autocad, column, constructive, degrau, DETAIL, details, DWG, échelle, escada, escalier, étape, ladder, leiter, Lock, stair, staircase, stairway, step, stufen, treppe, treppen
