Deck Structure DWG Section for AutoCAD

Deck Structure DWG Section for AutoCAD

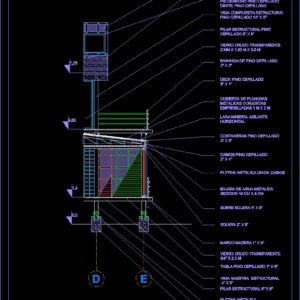

Section structure in wooden with concrete supports – Deck structure

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

concrete with bolones, metal plate, structural, structural master beam, brushed pine, transparent raw, wood, sill, metal water drop section cm cm, metal union cabins, brushed pine, insulating mineral horizontal, of joint metal plates, brushed pine, brushed pine railing, Transparent glass transparent mm, structural brushed pine, structural composite brushed pine, frame right foot pine brushed pine lintel brushed, vertical mineral wool, brushed pine wood

Raw text data extracted from CAD file:

E D 0.0 4.85 1.4 7.76 HORMIGON CON BOLONES 0.50 M X 0.50 M X 1M \fArial|b0|i0|c0|p34;PERNO 1" X 3/4" PLETINA METALICA 0.45 X 0.10 X 0.5 \fArial|b0|i0|c0|p34;PILAR ESTRUCTURAL 8" X 8" VIGA MAESTRA ESTRUCTURAL 4" X 8" \fArial|b0|i0|c0|p34;TABLA PINO CEPILLADO 1" X 8" \fArial|b0|i0|c0|p34;VIDRIO CRUDO TRANSPARENTE 3/4" X 2.3 M \fArial|b0|i0|c0|p34;MARCO MADERA 1" X 4" \fArial|b0|i0|c0|p34;SOLERA 2" X 8" \fArial|b0|i0|c0|p34;SOBRE SOLERA 4" X 6" BAJADA DE AGUA METALICA SECCION 10 CM X 5 CM \fArial|b0|i0|c0|p34;PLETINA METALICA UNION CABIOS \fArial|b0|i0|c0|p34;CABIOS PINO CEPILLADO 2" X 4" \fArial|b0|i0|c0|p34;COSTANERAS PINO CEPILLADO 2" X 3" \fArial|b0|i0|c0|p34;LANA MINERAL AISLANTE HORIZONTAL \fArial|b0|i0|c0|p34;CUBIERTA DE PLANCHAS METALICAS CONJUNTAS EMPRESILLADAS 1 M X 2 M \fArial|b0|i0|c0|p34;DECK PINO CEPILLADO 8" X 1" BARANDA DE PINO CEPILLADO 2" X 2" VIDRIO CRUDO TRANSPARENTE 2 MM X 1.20 M X 2.3 M \fArial|b0|i0|c0|p34;PILAR ESTRUCTURAL PINO CEPILLADO 8" X 8" \fArial|b0|i0|c0|p34;VIGA COMPUESTA ESTRUCTURAL PINO CEPILLADO 12" X 5" \fArial|b0|i0|c0|p34;ESTRUCTURAS DE MARCO PIE DERECHO PINO CEPILLADO DINTEL PINO CEPILLADO \fArial|b0|i0|c0|p34;AISLANTE VERTICAL LANA MINERAL \fArial|b0|i0|c0|p34;MACHIMBRAO MADERA PINO CEPILLADO 1/2" X 4"

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass, Wood
Measurement Units
Footprint Area
Building Features	Deck / Patio
Tags	autocad, concrete, construction details section, cut construction details, deck, DWG, section, structure, supports, wooden
