Detail Strainer DWG Detail for AutoCAD

Detail Strainer DWG Detail for AutoCAD

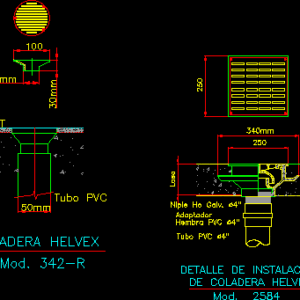

Helvex strainer – Installation details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

slab, npt, de coladera helvex, mod., nipple ho galv., adapter, female pvc, pvc tube, installation detail, npt, pvc tube, helvex strain, mod.

Raw text data extracted from CAD file:

Losa 85mm 250 340mm 250 -78.66458969810147 -78.66458969810147 -78.66458969810147 -78.66458969810147 -78.66458969810147 NPT DE COLADERA HELVEX Mod. 2584 Niple Ho Galv. d4" Adaptador Hembra PVC d4" Tubo PVC d4" DETALLE DE INSTALACION 100 40mm 30mm 50mm NPT -77.44582486217612 -77.44582486217612 -77.44582486217612 -77.44582486217612 Tubo PVC COLADERA HELVEX Mod. 342-R

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, DETAIL, details, DWG, einrichtungen, facilities, gas, gesundheit, helvex, installation, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, strainer, wasser bestimmung, water
