Detail Water Heater DWG Detail for AutoCAD

Detail Water Heater DWG Detail for AutoCAD

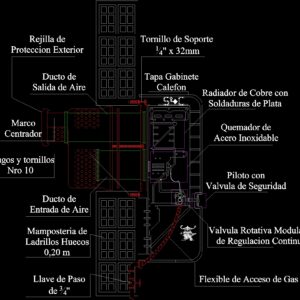

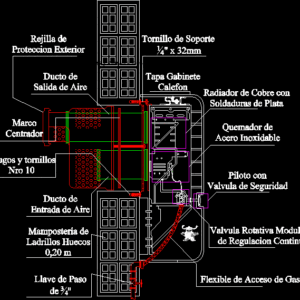

is a detail of a water heater and specifying indicating gas inlet connection and ventilation system under balanced shot method.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Air outlet duct, Air intake duct, Lid cabinet heater, Pilot with safety valve, Stainless steel burner, Copper radiator with silver soldering, Continuous regulation modulating rotary valve, Flexible gas access, on the way, Of holes, Centering frame, Screw bolts nro, of support, Outdoor

Raw text data extracted from CAD file:

A B \W9.78529; Ducto de \W9.07616; Salida de Aire \W9.78529; Ducto de \W8.88669; Entrada de Aire \W9.04093; Tapa Gabinete \W9.92847; Calefon \W9.62923; Piloto con \W9.72337; Valvula de Seguridad \W9.18705; Quemador de \W8.67801; Acero Inoxidable \W9.48923; Radiador de Cobre con \W8.34536; Soldaduras de Plata \W8.64695; Valvula Rotativa Modulante \W9.31551; de Regulacion Continua \W8.93611; Flexible de Acceso de Gas \W9.12923; \A1;Llave de Paso \W8.75806; \A1;de \A1;\H0.70000x;\S3#4;\A1;" \W8.84152; \A1;Mamposteria de \W8.71302; \A1;Ladrillos Huecos \W8.62103; \A1;0,20 m \W8.68298; Marco \W9.64730; Centrador \W8.45918; Tarugos y tornillos \W9.98786; Nro 10 \W8.38262; \A1;Tornillo de Soporte \W9.36451; \A1; \A1;\H0.70000x;\S1#4;\A1;" x 32mm \W9.71144; \A1;Rejilla de \W8.38578; \A1;Proteccion Exterior

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, boiler, connection, Construction detail, DETAIL, DWG, einrichtungen, facilities, gas, gesundheit, heater, indicating, inlet, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, system, ventilation, wasser bestimmung, water
