Detalle Steel Frame DWG Block for AutoCAD

Detalle Steel Frame DWG Block for AutoCAD

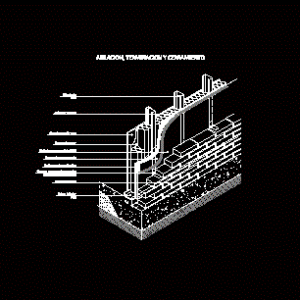

Detalle de cubierta entre piso y aislacion y cerramiento de steel frame

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

pgc amount, thermal insulation, gypsum rock plate, vapor barrier, wind water barrier, expanded polystyrene, stiffening diaphragm, lower floor pgu, grampa for bonding between masonry structure, solid bricks, pgc amount, thermal insulation, gypsum rock plate, vapor barrier, wind water barrier, expanded polystyrene, stiffening diaphragm, lower floor pgu, grampa for bonding between masonry structure, solid bricks, eps, substrate, wind water barrier, thermal insulation glass wool, ceiling tile, thermal insulation glass wool, closing valance, cover termination: corrugated sheet, interior plasterboard, dry mezzanine, lined with pgc beams, bottom panel, of soul in support of pgc beams, pgu, between substrate mezzanine beam, top pb pg panel, pgc pbc panel, of mezzanine pgc, to avoid rotating beams, between beams for each upright, horizontal diaphragm, finish enclosure, cover

Raw text data extracted from CAD file:

Montante PGC Aislacion termica Placa de roca de yeso Barrera de vapor Barrera de agua y viento Poliestireno expandido (EPS) Diafragma de rigidizacion Solera inferior PGU Grampa para vinculacion entre mamposteria y estructura Ladrillos macizos Montante PGC Aislacion termica Placa de roca de yeso Barrera de vapor Barrera de agua y viento Poliestireno expandido (EPS) Diafragma de rigidizacion Solera inferior PGU Grampa para vinculacion entre mamposteria y estructura Ladrillos macizos EPS Substrato Barrera de agua y viento Aislacion termica lana de vidrio Placa interior cielorraso Aislacion termica lana de vidrio Cenefa de terminacion Terminacion cubierta: chapa acanalada Placa de yeso interior ENTREPISO SECO \A1;Montante alineado con vigas PGC \A1;Solera inferior de panel de PA PGU \A1;Rigidizador de alma en apoyos de vigas PGC \A1;Cenefa PGU \A1;Tornillo T2 c/alas entre substrato y viga de entrepiso \A1;Solera superior de panel de PB PGU \A1;Montante de panel PB PGC \A1;Viga de entrepiso PGC \A1;Strapping para evitar rotacion de vigas \A1;Tornillos entre solera y viga por cada montante \A1;Substrato, diafragma horizontal AISLACION, TERMINACION Y CERRAMIENTO CUBIERTA

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Glass, Masonry, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, dach, dalle, de, detalle, DWG, entre, escadas, escaliers, frame, lajes, mezanino, mezzanine, piso, platte, reservoir, roof, slab, stair, steel, steel frame, telhado, toiture, treppe
