Disco Project 2D DWG Full Project for AutoCAD

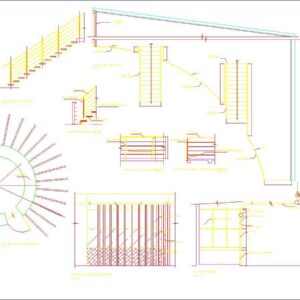

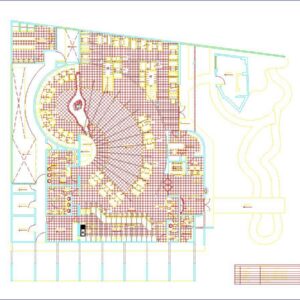

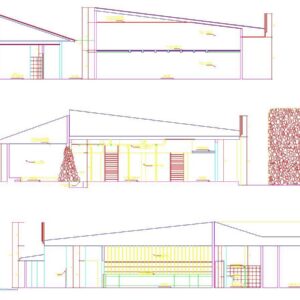

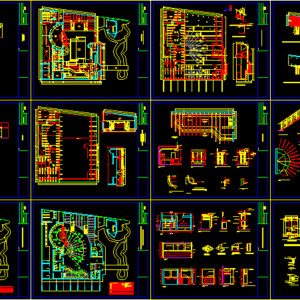

Disco Club Project with floor plan, sections and elevations. It has Illumination/ lighting drawing,furniture coding, plan of luminaries and ventilation equipment, 1st floor distribution plan, column, structural and constructional details and dimensions. The floor plan has principal entrance, hall, deposit rooms, bar / saloon with applied materials and washrooms.The total foot print area of the plan is approximately 850 sq meters.

Language Spanish
Drawing Type Full Project
Category
Additional Screenshots

File Type dwg
Materials Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood, Other
Measurement Units Metric
Footprint Area 500 - 999 m² (5382.0 - 10753.1 ft²)
