Disconnector DWG Block for AutoCAD

Disconnector DWG Block for AutoCAD

Disconnector unipolar – Single -pole

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

constructive features, High conductivity electrolytic copper foils, Tinned contacts, Safety lock against accidental opening., Opening of, Vertical horizontal mounting, Base in galvanized steel fºgº, Hook for use of opening tool on load, Terminals according to nema, Support insulator, Upper contact, Opening limiter, Inner contact, Unipolar disconnector, Perforations according to, tension, Max., current, nominal, Bil, current, Peak

Raw text data extracted from CAD file:

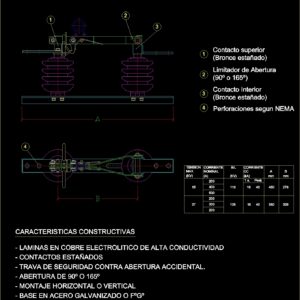

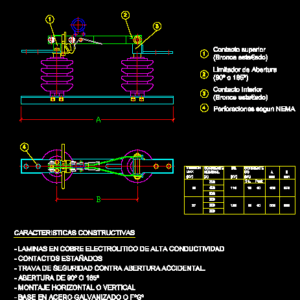

\A1;A \A1;B 4 B A 1 2 3 CARACTERISTICAS CONSTRUCTIVAS - LAMINAS EN COBRE ELECTROLITICO DE ALTA CONDUCTIVIDAD - CONTACTOS ESTAÑADOS - TRAVA DE SEGURIDAD CONTRA ABERTURA ACCIDENTAL. - ABERTURA DE 90º O 165º - MONTAJE HORIZONTAL O VERTICAL - BASE EN ACERO GALVANIZADO O FºGº - GANCHO PARA UTILIZACION DE HERRAMIENTA DE ABERTURA EN CARGA - TERMINALES SEGUN NEMA - AISLADOR SOPORTE Contacto superior (Bronce estañado) Limitador de Abertura (90º o 165º) Contacto Interior (Bronce estañado) SECCIONADOR UNIPOLAR Perforaciones segun NEMA 1 2 3 4 TENSION MAX. CORRIENTE NOMINAL BIL (KV) (A) (KV) CORRIENTE CC (kA) mm A mm B 15 200 400 630 200 200 200 110 16 450 278 27 125 16 550 328 40 40 1 s. Peak
