Drains DWG Detail for AutoCAD

Drains DWG Detail for AutoCAD

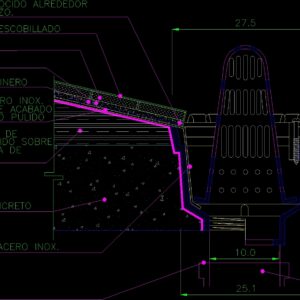

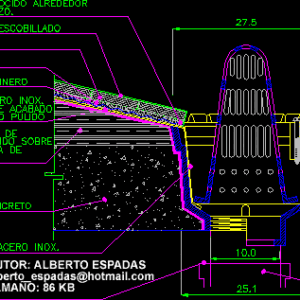

Detail parabolic funnel in deck roof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Pvc tube, Concrete slab, Stainless steel funnel., Retouched, Valance of, Cement polished on, Slab in area, Stainless steel tray., Finished, Fine polished cement, Chicken coop, mortar, Brickwork, Brushed lechadeo, For reinforcement., Annealed wire around

Raw text data extracted from CAD file:

27.5 25.1 10.0 11.8 21.6 14.5 27.5 25.1 TUBO DE PVC 10.0 11.8 21.6 14.5 LOSA DE CONCRETO EMBUDO DE ACERO INOX. RETACADA CENEFA (FINO DE CEMENTO PULIDO SOBRE LOSA EN AREA DE CHAROLA). CHAROLA DE ACERO INOX. CON MALLA,SOBRE ACABADO FINO DE CEMENTO PULIDO TELA DE GALLINERO MORTERO ENLADRILLADO LECHADEO Y ESCOBILLADO PARA REFUERZO. ALAMBRE RECOCIDO ALREDEDOR

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features	Deck / Patio
Tags	abwasserkanal, autocad, banhos, casa de banho, deck, DETAIL, drains, DWG, fosse septique, mictório, parabolic, plumbing, roof, sanitär, Sanitary, sewer, toilet, toilette, toilettes, urinal, urinoir, wasser klosett, WC
