Ecological Home DWG Section for AutoCAD

Ecological Home DWG Section for AutoCAD

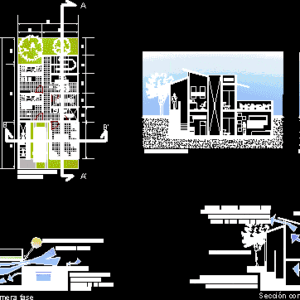

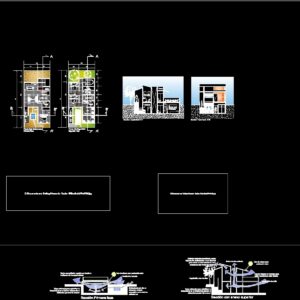

Ecological housing bio-climatic for cities on the beach – Plants – Sections – Schemes

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

master bedroom, kitchen, study, longitudinal section a-a ‘, use of eaves for solar protection, cross ventilation, living room, dining room, patio serv, bathroom, ground floor, terrace, up, keyboard, cpu, mouse, pad, underground ground floor – first phase, superficial upper floor – second phase, cistern, air inlet, fresh air outlet, b-b ‘cross section, section with upper annex, buried house to stabilize the temperature inside, reducing the general infiltration of the exterior, cooling of the air when venting the submerged duct in the underground cistern, roof with vegetal cover that prevents the incidence of the solar rays, vegetation for shade, inclined roof allowing smaller sun impact and with opening for daytime hot air outlet and air inlet fresh night, hot air outlet, first phase section, use of window lattice to avoid direct solar penetration, water tank

Raw text data extracted from CAD file:

X 14 6.5 2.8 6.2 4.9 2.6 3.9 1.8 2 2.1 1.5 1.7 3.9 14 2.8 6.2 4.9 6.5 3.4 3.1 Recamara Principal Cocina Estudio Seccion Longitudinal A-A' N+0.80 N+0.80 N-2.10 N-2.10 Uso de aleros para protección solar Ventilación cruzada Sala Comedor Patio Serv Baño Recamara Principal Cocina Baja Patio Serv Baño Recamara 2 Recamara 1 Terraza Sube teclado cpu mouse pad Baja 5 5 5 5 5 5 5 Planta Baja Subterranea- Primera Fase Planta Alta Superficial- Segunda Fase 5 5 5 5 5 5 5 5 5 5 5 5 5 Cisterna Entrada de aire Salida de aire fresco N-2.10 N-2.10 N+0.80 N+0.80 N+0.80 Recamara Principal Estudio Cocina Estudio A A' A A' Seccion Longitudinal A-A' N+0.80 N+0.80 N-2.10 N-2.10 B B' B B' Seccion Transversal B-B' Sección con anexo superior Casa enterrada para estabilizar la temperatura en el interior reduciendo la infiltracion general del exterior Ventilación cruzada Enfriamiento del aire al atrevesar el ducto sumergido en la cisterna subterraneo Uso de aleros para protección solar Techo con cubierta vegetal que impide la incidencia de los rayos solares Uso de aleros para protección solar Ventilación cruzada Vegetación para sombra Cubierta inclinada permitiendo menor impacto de asoleamiento y con abertura para salida de aire caliente diurno y entrada de aire fresco de nocturno Salida de aire caliente Casa enterrada para estabilizar la temperatura en el interior reduciendo la infiltracion general del exterior Sección Primera fase Uso de Celosia en ventana para evitar penetracion solar directo Tinaco

Language	Spanish
Drawing Type	Section
Category	Parks & Landscaping
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features	Deck / Patio
Tags	autocad, beach, bioclimatic, bioclimatica, bioclimatique, bioklimatischen, cities, durable, DWG, ecological, home, Housing, la durabilité, nachhaltig, nachhaltigkeit, plants, schemes, section, sections, sustainability, sustainable, sustentabilidade, sustentável
