Electric Meter Box 2D DWG Plan for AutoCAD

2d drawing – plan – view – isometric

Drawing labels, details, and other text information extracted from the CAD file:

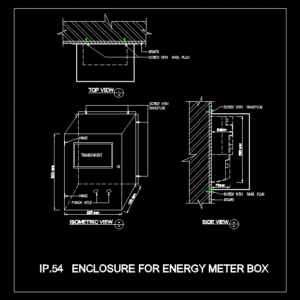

isometric view, hole, screw with rawlplug, enclosure for energy meter box, side view, top view, screw with rawl plug, screw with rawlplug, board

Raw text data extracted from CAD file:

300 mm 225 mm 150 mm 72mm 84mm 260 mm 300 mm 225 mm 150 mm \W0.8;HINGE ISOMETRIC VIEW \W0.8;TRANSPARENT \W0.8;HINGE \W0.8;PUNCH HOLE SCREW WITH RAWLPLUG IP.54 ENCLOSURE FOR ENERGY METER BOX SIDE VIEW TOP VIEW SCREW WITH RAWL PLUG SCREW WITH RAWL PLUG SCREW WITH RAWLPLUG BOARD BOARD 72mm 84mm 260 mm – – – – – –
