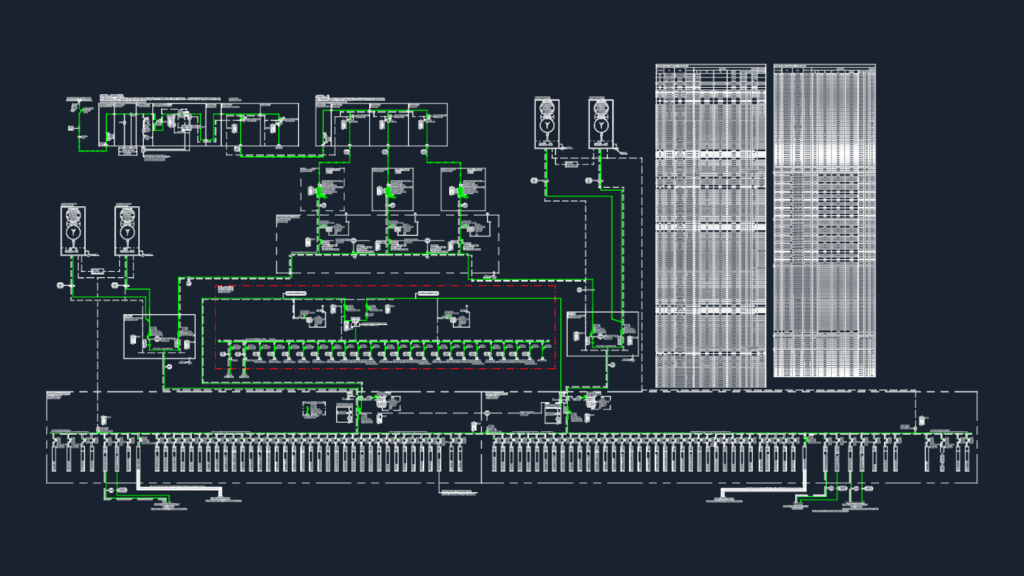

Unifilar diagram for a high-capacity power distribution system, including 13.8kV medium voltage entry and Schneider SM6 compact shielding. We’ve mapped out 1500kVA and 750kVA dry transformers alongside four generator groups and extensive PGBT distribution. It’s built for large-scale projects like hospitals, incl. specific feeds for tomography and mammography equipment plus a full cable schedule. Diagrama unifilar de entrada e medição, transformação e distribuição de baixa tensão.
Electrical Single Line Diagram Substation with Transformers and Generators
