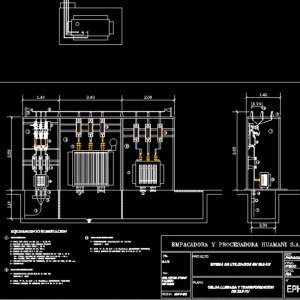

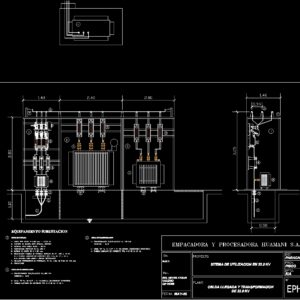

Electrical Station 22.9kv

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Substation equipment, Arrival cell, Cable type mm kv, Wood support for inner terminal, Kv cable terminal, Mm copper bars, Unipolar disconnector, Lever to open close disconnector, Insulator of line of trails of line of mm, Fuse type kv current limiter, Tripolar fuse disconnector kv ka, Transformation cell, Connection, Kva transformer, Fuse type kv current limiter, Canal faith from, Fuse type kv current limiter, Kva transformer, Connection, Transformation cell, Iii, Transformix, Paracas, Packer huamani s.a.c., Ing. Snows aybar valerio cip, date, Cell arrival kv transformation, N.a.v., Dib., Rev., Use system in kv, draft, flat, Prov., Dist., Ica, Dpto., Pisco, Iii

Raw text data extracted from CAD file:

\A1;1.40 \A1;2.40 \A1;2.00 \A1;1.40 \A1;0.39 \A1;2.80 \A1;3.05 \A1;1.10 \A1;0.90 EQUIPAMIENTO SUBESTACION CELDA DE LLEGADA I 1- CABLE TIPO N2XSY 3-1x50 mm - 18/30 KV 2- SOPORTE DE MADERA PARA TERMINAL INTERIOR 3- TERMINAL PARA CABLE N2XSY - 30 KV 5- BARRAS DE COBRE DE 5 X 50 mm 4- SECCIONADOR UNIPOLAR 30 KV, 350 A 6.2- PALANCA PARA ABRIR Y CERRAR SECCIONADOR 7- AISLADOR PORTABARRAS DE PORCELANA, 30 KV, LINEA DE FUGA DE 400 mm 6.1- FUSIBLE LIMITADOR DE CORRIENTE TIPO H-H, 24 KV - 25 A 6- SECCIONADOR FUSIBLE DE POTENCIA TRIPOLAR 30 KV -400 A, 40 KA II CELDA DE TRANSFORMACION CONEXION : Dyn5 1- TRANSFORMADOR 22.9/0.46/0.23 KV, 800 KVA 4- FUSIBLE LIMITADOR DE CORRIENTE TIPO H-H DE 24 KV 25 A 2- CANAL "U" Fe. DE 3/8" x 7x 10x1500mm (DIMENSIONES INTERIORES) 2- CANAL "U" Fe. DE 3/8" x 7x 10x1500mm (DIMENSIONES INTERIORES) 4- FUSIBLE LIMITADOR DE CORRIENTE TIPO H-H DE 24 KV 6A 1- TRANSFORMADOR 22.9/0.46/0.23 KV, 160 KVA CONEXION : Dyn5 CELDA DE TRANSFORMACION III 8- TRANSFORMIX 1 2 3 8 4 6 7 5 1 2 3 1 2 3 PARACAS EMPACADORA Y PROCESADORA HUAMANI S.A.C. ING. NEVES AYBAR VALERIO CIP 81399 FECHA MAY-05 CELDA LLEGADA Y TRANSFORMACION DE 22.9 KV N.A.V. Dib. Rev. SITEMA DE UTILIZACION EN 22.9 KV PROYECTO PLANO PROV. DIST. ICA N° DPTO. PISCO 1 2 3 8 4 6 7 5 I II III I 1.40 2.40 2.00 1.40 0.39 2.80 3.05 1.10 0.90 EPH-07

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Wood
Measurement Units
Footprint Area
Building Features
Tags	alta tensão, autocad, beleuchtung, block, détails électriques, detalhes elétrica, DWG, electrical, electrical details, elektrische details, haute tension, high tension, hochspannung, iluminação, kläranlage, kv, l'éclairage, la tour, lighting, Station, torre, tower, treatment plant, turm
