Electricity DWG Block for AutoCAD

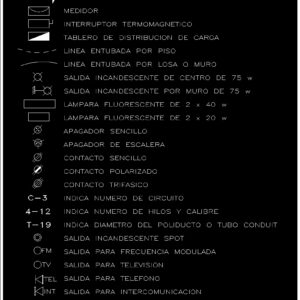

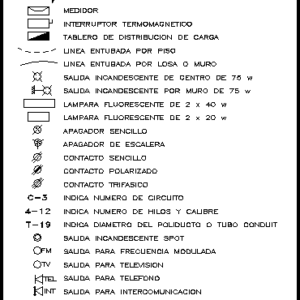

Electricity – Symbols

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

int, tel, the pipe to be specified will be:, int, tel, bell buzzer, bell button, exit for intercommunication, phone out, TV out, frequency modulated output, spot glow, indicates diameter of conduit pipe polyduct, indicates number of gauge threads, indicates circuit number, three-phase contact, polarized contact, simple contact, stair damper, simple eraser, fluorescent lamp, incandescent outlet per, center output, line piped by slab wall, piped line per floor, load distribution board, thermomagnetic switch, measurer, c. f.

Raw text data extracted from CAD file:

INT FM TEL TV S I M B O L O G I A 13 mm (1/2"). N O T A : La tuberia al no especificarse sera de: INT TEL TV FM T-19 4-12 C-3 CAMPANA O ZUMBADOR BOTON DE TIMBRE SALIDA PARA INTERCOMUNICACION SALIDA PARA TELEFONO SALIDA PARA TELEVISION SALIDA PARA FRECUENCIA MODULADA SALIDA INCANDESCENTE SPOT INDICA DIAMETRO DEL POLIDUCTO O TUBO CONDUIT INDICA NUMERO DE HILOS Y CALIBRE INDICA NUMERO DE CIRCUITO CONTACTO TRIFASICO CONTACTO POLARIZADO CONTACTO SENCILLO APAGADOR DE ESCALERA APAGADOR SENCILLO LAMPARA FLUORESCENTE DE 2 x 20 w LAMPARA FLUORESCENTE DE 2 x 40 w SALIDA INCANDESCENTE POR MURO DE 75 w SALIDA INCANDESCENTE DE CENTRO DE 75 w LINEA ENTUBADA POR LOSA O MURO LINEA ENTUBADA POR PISO TABLERO DE DISTRIBUCION DE CARGA INTERRUPTOR TERMOMAGNETICO MEDIDOR ACOMETIDA DE LA C.F.E.

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, DWG, electricity, simbolismo, symbolik, symbolism, symbolisme, symbols
