Extreme Pitched Roofs DWG Detail for AutoCAD

Extreme Pitched Roofs DWG Detail for AutoCAD

Details – Specifications – sizing – Construction

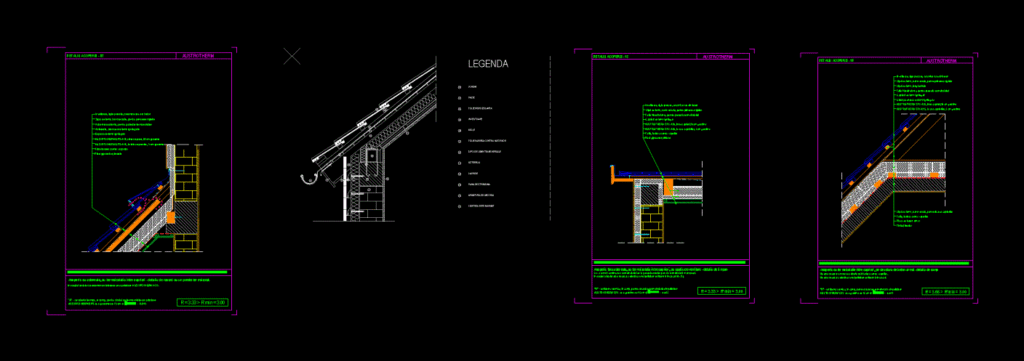

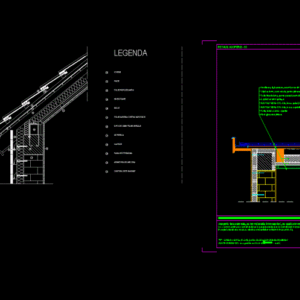

Drawing labels, details, and other text information extracted from the CAD file (Translated from Romanian):

note: these details are basically solving. For detailed solutions please contact the manufacturer., Austrotherm, ceramic tiles or concrete, slats for fixing the tiles, foil for thermal insulation protection, wooden rafters, wood fireproof panels, austrotherm between cm thick, austrotherm to face cm thick, vapor barrier foil, boards, roof with thermal insulation between rafters Detail of connection with a thermal insulated wall., In addition to the kind, it is recommended to use austrotherm polystyrene, roof detail, r’min, resistance to austrotherm polystyrene thermoinsulation of thickness cm and, note: these details are basically solving. For detailed solutions please contact the manufacturer., Austrotherm, boarding, wooden cross slats, rulers, covers, waterproofing film, fascia, trough, legend, vapor barrier foil, roebuck, to the streets, anchor fittings, reinforced concrete belt, note: these details are basically solving. For detailed solutions please contact the manufacturer., Austrotherm, ceramic tiles or concrete, slats for fixing the tiles, foil for thermal insulation protection, vapor barrier, wood fireproof wooden rafters, austrotherm between cm thick, austrotherm to face cm thick, boards, roof without thermal insulation between with ventilation space detail, it will be followed by the thermal insulation from the outer wall to the attic of the attic., it is necessary to use a load resistant polystyrene at the right, roof detail, r’min, resistance to austrotherm polystyrene thermoinsulation of thickness cm and, note: these details are basically solving. For detailed solutions please contact the manufacturer., Austrotherm, ceramic tiles or concrete, slats for fixing the tiles, foil for thermal insulation protection, vapor barrier, longitudinal slats, austrotherm between cm thick, austrotherm to face cm thick, slats for fixing the rafters, reinforced concrete slab, interior finish, wood fireproof board, wooden rafters, it is not necessary to use a load resistant polystyrene., roof with thermal insulation between the reinforced concrete structure of the field detail, roof detail, no diffusion layer is required under the vapor barrier., r’min, resistance to austrotherm polystyrene thermoinsulation of thickness cm and

Raw text data extracted from CAD file:

NOTA: ACESTE DETALII CONSTITUIE REZOLVARI DE PRINCIPIU. PENTRU SOLUTIONAREA SPECIFICA A DETALIILOR VA RUGAM CONTACTATI PRODUCATORUL. AUSTROTHERM Invelitoare, tigle presate, ceramice sau din beton Sipci de lemn, transversale, pentru prinderea tiglelor Folie hidroizolanta, pentru protectia termoizolatiei Capriori de lemn ignifugati Astereala, scanduri de lemn ignifugate AUSTROTHERM EPS-A10, intre capriori,10 cm grosime AUSTROTHERM EPS-A10, la fata capriorilor, 5 cm grosime Folie bariera contra vaporilor Placi gipscarton,finisate Acoperis cu astereala, cu termoizolatia intre capriori - detaliu de racord cu un perete termoizolat. In dreptul sortului se recomanda folosirea unui polistiren AUSTROTHERM A 25. DETALIU ACOPERIS - 07 R = 3.33 > R'min = 3.00 "R" - rezistenta termica, in camp, pentru stratul de termoizolatie din polistiren AUSTROTHERM EPS cu o grosime de 15 cm si l \H0.72x;(de calcul) \fSymbol|b0|i0|c2|p18;\H1.389x; = 0.045 NOTA: ACESTE DETALII CONSTITUIE REZOLVARI DE PRINCIPIU. PENTRU SOLUTIONAREA SPECIFICA A DETALIILOR VA RUGAM CONTACTATI PRODUCATORUL. AUSTROTHERM 29 28 27 30 31 32 34 35 38 37 36 33 19 7 12 13 20 21 31 32 33 34 35 36 37 38 ASTERIALA SIPCI DE LEMN TRANSVERSALE RIGLE INVELITOARE FOLIE HIDROIZOLANTA PAZIE JGHEAB LEGENDA FOLIE BARIERA CONTRA VAPORILOR 30 29 28 CAPRIOR PANA DE STREASINA ARMATURA DE ANCORAJ 27 CENTURA BETON ARMAT NOTA: ACESTE DETALII CONSTITUIE REZOLVARI DE PRINCIPIU. PENTRU SOLUTIONAREA SPECIFICA A DETALIILOR VA RUGAM CONTACTATI PRODUCATORUL. AUSTROTHERM Invelitoare, tigle presate, ceramice sau din beton Sipci de lemn, transversale, pentru prinderea tiglelor Folie hidroizolanta, pentru protectia termoizolatiei Folie, bariera contra vaporilor Capriori de lemn ignifugat AUSTROTHERM EPS-A10, intre capriori,10 cm grosime AUSTROTHERM EPS-A10, la fata capriorilor, 5 cm grosime Placi gipscarton,finisate Acoperis fara astereala, cu termoizolatia intre capriori, cu spatiu de ventilare - detaliu de timpan\fArial Narrow|b1|i0|c0|p34; Se va urmari continuarea termoizolatiei de la peretele exterior pana la termoizolatia mansardei. In dreptul aticului este necesara folosirea unui polistiren rezistent la incarcari (A-25). DETALIU ACOPERIS - 13 R = 3.33 > R'min = 3.00 "R" - rezistenta termica, in camp, pentru stratul de termoizolatie din polistiren AUSTROTHERM EPS cu o grosime de 15 cm si l \H0.72x;(de calcul) \fSymbol|b0|i0|c2|p18;\H1.389x; = 0.045 NOTA: ACESTE DETALII CONSTITUIE REZOLVARI DE PRINCIPIU. PENTRU SOLUTIONAREA SPECIFICA A DETALIILOR VA RUGAM CONTACTATI PRODUCATORUL. AUSTROTHERM Invelitoare, tigle presate, ceramice sau din beton Sipci de lemn, transversale, pentru prinderea tiglelor Folie hidroizolanta, pentru protectia termoizolatiei Folie, bariera contra vaporilor Sipci de lemn, longitudinale AUSTROTHERM EPS-A15, intre capriori,10 cm grosime AUSTROTHERM EPS-A15, la fata capriorilor, 5 cm grosime Sipci de lemn, transversale, pentru fixarea capriorilor Placa de beton armat Finisaj interior Clesti, scandura de lemn ignifugata Capriori de lemn ignifugati Nu este necesara folosirea unui polistiren rezistent la incarcari. Acoperis cu termoizolatie intre capriori, pe structura de beton armat - detaliu de camp DETALIU ACOPERIS - 19 Nu este necesar un strat de difuzie sub bariera contra vaporilor.. R = 3.66 > R'min = 3.00 "R" - rezistenta termica, in camp, pentru stratul de termoizolatie din polistiren AUSTROTHERM EPS cu o grosime de 15 cm si l \H0.72x;(de calcul) \fSymbol|b0|i0|c2|p18;\H1.389x; = 0.041

Language	N/A
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Wood, Other
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, construction, cover, dach, DETAIL, details, DWG, extreme, hangar, lagerschuppen, pitched, roof, roofs, shed, sizing, specifications, structure, terrasse, toit
