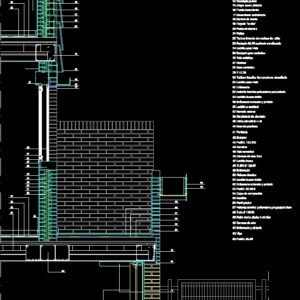

Facade Section DWG Section for AutoCAD

Facade Section DWG Section for AutoCAD

House Facade Section – Engineering specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

scale, mesh, sill, compersion layer, iron grate, prefabricated part sump, expanded polystyrene insulation, encachado, mesh, sill, compression layer, waterproofing sheet, polished concrete, pressed earth, felt, gutter, ceramic tile, rough brick, tube, plastered, thermal insulation, plaster plastered painted, profile, double hollow brick, compression layer, scramble, plasterboard profile, projected polyurethane thermal insulation, hydraulic tile for diamond tip, rocker, painted steel sheet, motorized mechanism, edge band, wrought, bulldozer, floating oak wood flooring, Semi-finished finishing skirting, prodema type phenolic board screwed, face brick, plastered, projected polyurethane thermal insulation, double hollow brick, plaster plastered painted, sardinel brick, interior finish, aluminum carpentry, climalit glass, blind guide, blind, goteron, profile, ceramic stoneware skirting, asphalt cloth, mortar, face brick, ceramic stoneware, false ceiling similar plasterboard, tube, air chamber, detail, air chamber, painted plastering, beam, profile

Raw text data extracted from CAD file:

ESCALA 1/20 02 Mallazo 15.15 03 Solera 04 Capa de compersion 06 Rejilla hierro 07 Sumidero pieza prefabricada 08 Aislante poliestireno expandido 09 Encachado 10 Mallazo 15.15 11 Solera 13 Capa de compresión 12 Lamina impermeabilizante 14 Hormigón pulido 01 Tierra prensada 21 Fieltro 44 Canalon 45 Teja ceramica 47 Ladrillo tosco 48 TUBO # 120.60 49 Enfoscado 50 Aislante térmico 52 Enfoscado enlucido y pintado 53 Perfil L 50.50.6 51 Ladrillo hueco doble 54 Capa de compresión 55 Rasillón 56 Perfil pladur 57 Aislante termico poliuretano proyectado 9cm 14 13 12 11 10 9 5 3 8 7 6 2 1 4 17 16 15 18 22 21 20 19 30 29 34 33 32 35 23 31 37 39 38 40 43 41 42 44 45 18 47 48 46 50 51 52 20 21 22 23 53 36 05 Baldosa hidraulica para punta de diamante 16 Puerta basculante 15 chapa acero pintada 17 Mecanismo motorizado 18 Zuncho de borde 19 Forjado "in situ" 20 Pasta niveladora 22 Tarima flotante de madera de roble 23 Rodapìe 80.10 acabado semilacado 30 Tablero fenolico tipo prodema atornillado 31 Ladrillo cara vista 32 Enfoscado 54 55 56 57 29 T 40.30 33 Aislante termico poliuretano proyectado 34 Ladrillo hueco doble 35 Enfoscado enlucido y pintado 36 Ladrillo a sardinel 37 Remate interior 38 Carpinteria de aluminio 39 Vidrio climalit 6+4+6 40 Guia de persiana 41 Persiana 42 Goteron 43 Perfil L 100.100 58 24 59 28 27 26 25 25 Rodapie gres cerámico 26 Tela asfáltica 27 Mortero 24 Ladrillo cara vista 28 Gres cerámico 59 Falso techo pladur o similar 58 Tubo # 120.60 49 46 Cámara de aire 2cm DETALLE A 60 60 Camara de aire 60 61 Enfoscado y pintado 61 62 Viga 63 Perfil L 50.50 62 63

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Glass, Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, brick walls, constructive details, DWG, engineering, facade, house, mur de briques, panel, parede de tijolos, partition wall, section, specifications, ziegelmauer
