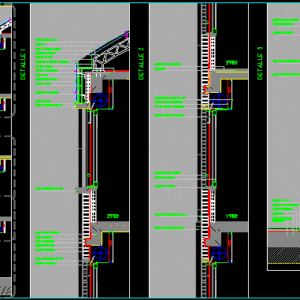

Section from basement to roof – Grooved plate Nº 24 – Lintel pre- modeled in armed concrete

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

plasterboard cover, access cover taparrollo, subfloor, galvanized iron profiles, reinforced lime folder, concrete heel, steam sweep, waterproofing insulation, perimeter sealer, slab of hªaª, drain pipe, pre-fabricated lintel of hªaª, zinc pluvial, corrugated sheet, zinc slug, fastening elements, reinforced lime folder, waterproofing insulation, subfloor, selected soil compacted, tile, waterproofing insulation, subfloor, selected soil compacted, reinforced lime folder, subfloor, Cast iron spout, galvanized sheet metal tube cm, metal tube railing, alfeizer of material, sliding windows, Rolling plastic curtain, pre-fabricated lintel of hªaª, leveling folder, thermal insulation, slab of hªaª, metallic structure, profile according to calculation, fastening anchoring elements, zinc channel, corrugated sheet, hook, p.b., metallic structure, profile according to calculation, corrugated sheet, hook, stainless steel water tank, common brick masonry, thick plaster, leveling folder, thermal insulation, slab of hªaª, ipn according to calculation, hollow brick masonry, jaharro fratazado the lime, reinforced concrete beam, exit terrace, Concrete seen without hollows, fastening anchoring elements, leveling folder, subfloor, waterproofing insulation, reinforced concrete slab, fastening anchoring elements, chained beam, trap door, level, p.b., detail

Raw text data extracted from CAD file:

TAPARROLLO DE PLACAS DE YESO TAPA DE ACCESO A TAPARROLLO CONTRAPISO PERFILES HIERRO GALVANIZADO CARPETA DE CAL REFORZADA TALON DE HORMIGON BARRERRA DE VAPOR AISLACION HIDROFUGA SELLADOR PERIMETRAL LOSA DE HªAª S/CALCULO CAÑO DE DRENAJE DINTEL PREMOLDEADO DE HªAª PLUVIAL DE ZINC CHAPA ACANALADA Nª24 BABETA DE ZINC ELEMENTOS DE SUJECION CARPETA DE CAL REFORZADA AISLACION HIDROFUGA CONTRAPISO SUELO SELECCIONADO COMPACTADO BALDOSA 40 x 40 AISLACION HIDROFUGA CONTRAPISO SUELO SELECCIONADO COMPACTADO CARPETA DE CAL REFORZADA CONTRAPISO CAÑO DE HIERRO FUNDIDO d100 TUBO CHAPA GALVANIZADA 15x8 cm BARANDA DE TUBO METALICO ALFEIZER DE MATERIAL VENTANAS CORREDIZAS CORTINA PLASTICA DE ENROLLAR DINTEL PREMOLDEADO DE HªAª DINTEL PREMOLDEADO DE HªAª CARPETA DE NIVELACION AISLACION TERMICA LOSA DE HªAª ESTRUCTURA METALICA PERFIL "C" SEGUN CALCULO ELEMENTOS DE ANCLAJE Y SUJECION CANALETA DE ZINC CHAPA ACANALADA Nª24 GANCHO "J" P.B. 1ªPISO 2ªPISO 3ªPISO ESTRUCTURA METALICA PERFIL "C" SEGUN CALCULO CHAPA ACANALADA Nª24 GANCHO "J" TANQUE DE ACGUA DE ACERO INOXIDABLE 1.000L MAMPOSTERIA DE LADRILLO COMUN 0,30m REVOQUE GRUESO CARPETA DE NIVELACION AISLACION TERMICA LOSA DE HªAª IPN SEGUN CALCULO MAMPOSTERIA DE LADRILLO HUECO JAHARRO FRATAZADO A LA CAL JAHARRO FRATAZADO A LA CAL VIGA DE HORMIGON ARMADO SALIDA A TERRAZA HORMIGON VISTO SIN OQUEDADES ELEMENTOS DE ANCLAJE Y SUJECION CARPETA DE NIVELACION CONTRAPISO AISLACION HIDROFUGA LOSA DE HORMIGON ARMADO ELEMENTOS DE ANCLAJE Y SUJECION VIGA DE ENCADENADO PUERTA TRAMPA 3º NIVEL 2º NIVEL 1º NIVEL P.B. ±0.00 ±0.00 ±0.00 ±0.00 ±0.00 ±0.00 DETALLE 1 DETALLE 2 DETALLE 3 DETALLE 1 DETALLE 2 DETALLE 3
