Finish Off Walls – Detail DWG Detail for AutoCAD

Detail finish off walls

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

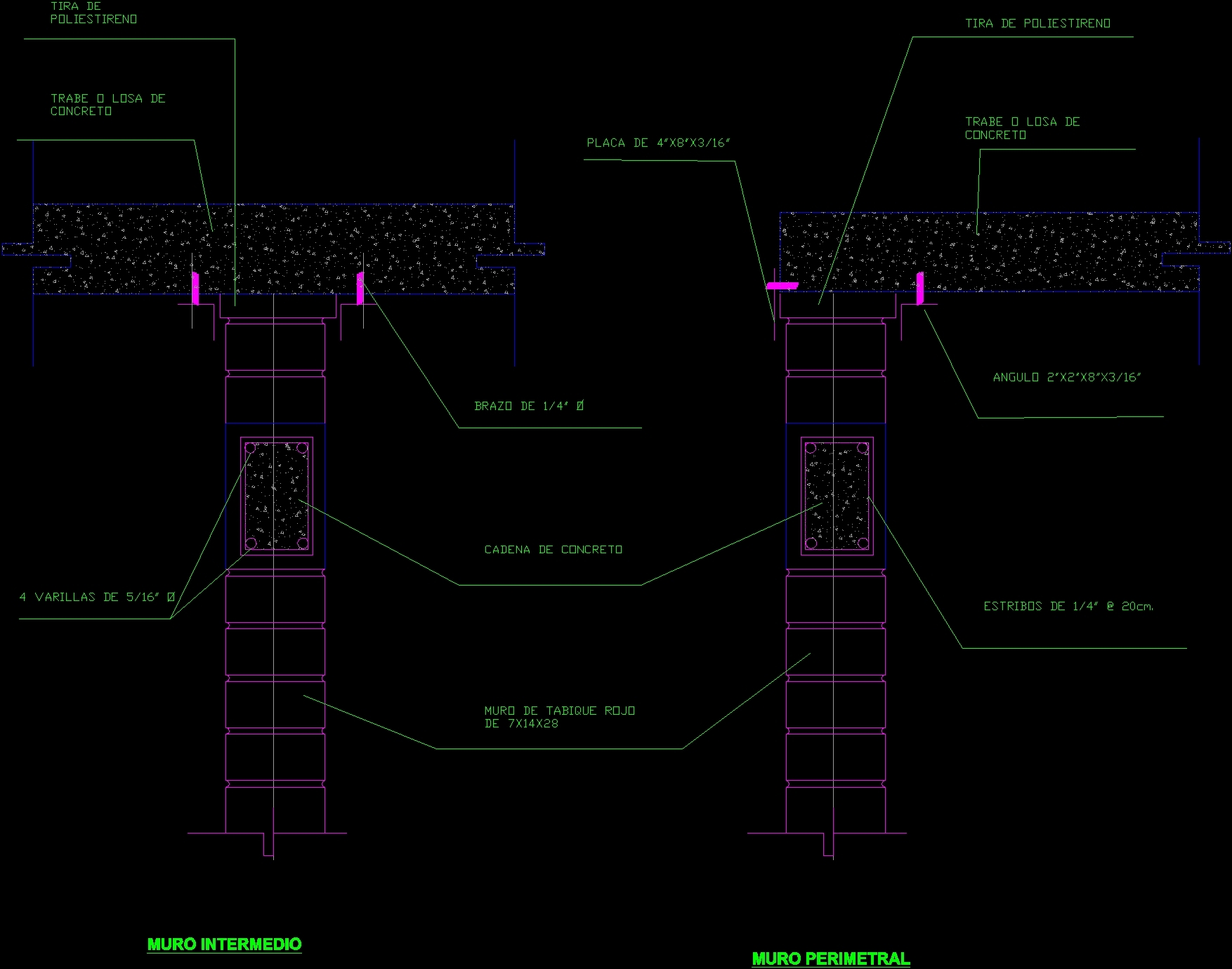

Polystyrene strip, Load concrete slab, Rods of, Red siding wall of, Concrete chain, Arm of, Plate of, Load concrete slab, Polystyrene strip, Stirrups of, Angle, Intermediate, Perimeter

Raw text data extracted from CAD file:

TIRA DE POLIESTIRENO TRABE O LOSA DE CONCRETO 4 VARILLAS DE 5/16″ O MURO DE TABIQUE ROJO DE 7X14X28 CADENA DE CONCRETO BRAZO DE 1/4″ O PLACA DE 4″X8″X3/16″ TRABE O LOSA DE CONCRETO TIRA DE POLIESTIRENO ESTRIBOS DE 1/4″ @ 20cm. ANGULO 2″X2″X8″X3/16″ \FARIALBD.TTF;\LMURO INTERMEDIO \FARIALBD.TTF;\LMURO PERIMETRAL
