Fire Bomb 2 DWG Block for AutoCAD

Fire Bomb 2 DWG Block for AutoCAD

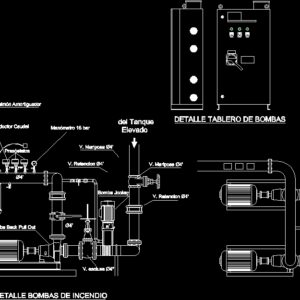

Fire bomb type Back Pull Out with Jockey bomb multy-cellular Norm NFPA 20

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

close, fire, jockey, pump back pull out, manometer bar, v. butterfly, v. retention, lung cushion, installation, of hydrants, v. butterfly, v. lock, v. retention, of the tank, high, detail fire pumps, grundfos, caudal transducer, jockey pump, pressure switches, pbr, pbp, high, of the tank, v. lock, jockey pump, pump board detail

Raw text data extracted from CAD file:

CLOSE INCENDIO 2 INCENDIO 1 JOCKEY A d8" Ø4' Bomba Back Pull Out Manómetro 15 bar V. Mariposa Ø4' V. Retencion Ø4' Pulmón Amortiguador A instalacion de hidrantes V. Mariposa Ø4' Ø4' V. esclusa Ø4" V. Retencion Ø4' del Tanque Elevado DETALLE BOMBAS DE INCENDIO GRUNDFOS GRUNDFOS Transductor Caudal Bomba Jockey Presóstatos PBR PBP Elevado del Tanque V. esclusa Ø4" Bomba Jockey DETALLE TABLERO DE BOMBAS

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
