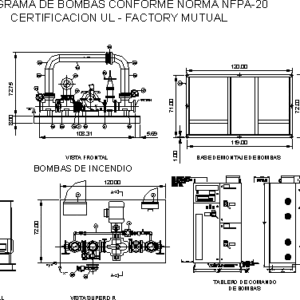

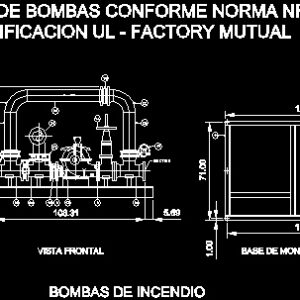

Fire Bomb DWG Block for AutoCAD

Fire bomb type Split case ,

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

side view, fire pumps, front view, top view, suction, command board, of pumps, pump diagram as per norm, certification and mutual factory, open doors, required to, bottom entry power wiring, qty day knockouts for, typ., air flow, for enough, clearance required, panel control, from the enclosure prior, entering the, metal filings from, to drilling to prevent, plate must be removed, removable conduit, dimensions and weight do not include shipping skid., nameplate amps are for an input power of, typ. plc’s, day. mounting, notes:, input from sensor transmitters per, alarm contact output, communication output, selection, digital inputs for analog communication, remote input contact, pump power wiring, single point power input, high voltage power wiring, low voltage signals not run with power, customer connections, h.p., power, input, amps, weight, pump mounting base

Raw text data extracted from CAD file:

“Z” “X” “Y” A A VISTA LATERAL 7 1 12 2 18 BOMBAS DE INCENDIO 17 18 VISTA FRONTAL 20 16 8 9 13 17 21 VISTA SUPERIOR 23 22 27 26 24 14 6 5 3 SUCTION 16 17 11 22 25 TABLERO DE COMANDO DE BOMBAS DIAGRAMA DE BOMBAS CONFORME NORMA NFPA-20 4 CERTIFICACION UL – FACTORY MUTUAL OPEN DOORS REQUIRED TO 15″ BOTTOM ENTRY POWER WIRING QTY (3) 3/4″ DIA. KNOCKOUTS FOR 42 1/2″ 44″ 3/4″ TYP. AIR FLOW FOR SUFFICIENT CLEARANCE REQUIRED 15″ CONTROL PANEL FROM THE ENCLOSURE PRIOR ENTERING THE METAL FILINGS FROM TO DRILLING TO PREVENT PLATE MUST BE REMOVED 6×19″ REMOVABLE CONDUIT 2) DIMENSIONS AND WEIGHT DO NOT INCLUDE SHIPPING SKID. 1) NAMEPLATE AMPS ARE FOR AN INPUT POWER OF 460/3/60. 3″ 18″ 24″ TYP. 4 PLC’S 1″ DIA. MOUNTING NOTES: E) 4-20mA INPUT FROM SENSOR TRANSMITTERS (ONE PER SENSOR) D) ALARM CONTACT OUTPUT (3 AMP/115V) C) 4-20mA COMMUNICATION OUTPUT SELECTION (TWO REQUIRED, 24V) B) DIGITAL INPUTS FOR ANALOG COMMUNICATION A) REMOTE START/STOP INPUT CONTACT (24VDC) C) PUMP #2 POWER WIRING B) PUMP #1 POWER WIRING A) SINGLE POINT POWER INPUT 2) HIGH VOLTAGE POWER WIRING 1) LOW VOLTAGE SIGNALS (DO NOT RUN WITH POWER WIRING) CUSTOMER CONNECTIONS 76″ 30 H.P. POWER 44 INPUT AMPS 24″ 6 1/4″ 950 (LBS.) WEIGHT BASE DE MONTAJE DE BOMBAS 72.00 120.00 8.00 72.75 108.31 71.00 5.69 1.00 119.00 120.00 72.00
