DETAILS OF EACH PART CONTAINING A FIRE SYSTEM SHOWN.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Diesel main pump control start, Of regulation, Antivibration, impulsion, Pressure gauge, Membrane, For test collector, Of tests, Regulation collector tests, Electric master pump control start, Composition of fire fighting equipment, retention, Pressure regulator, of security, Electric main, jockey, Diesel main, Game batteries, gas, of emergency, Fig main components of a fire fighting equipment

Raw text data extracted from CAD file:

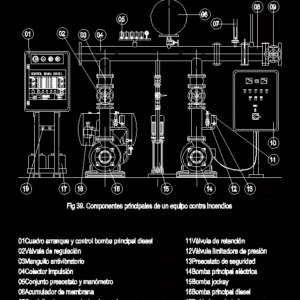

01Cuadro arranque y control bomba principal diesel 02Válvula de regulación 03Manguito antivibratorio 04Colector impulsión 05Conjunto presostato y manómetro 06Acumulador de membrana 07Caudalimetro para colector de pruebas 08Colector de pruebas (suministro opcional) 09Válvula regulación colector pruebas 10Cuadro arranque y control bomba principal eléctrica 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 Composición de los equipos contra incendios 11Válvula de retención 12Válvula limitadora de presión 13Presostato de seguridad 14Bomba principal eléctrica 15Bomba jockey 16Bomba principal diesel 17Doble juego baterias 18Depósito combustible 19Pulsadores de emergencia Fig 39. Componentes principales de un equipo contra incendios
