First Floor Concrete Deck & RC Beams/Columns Structural Plan

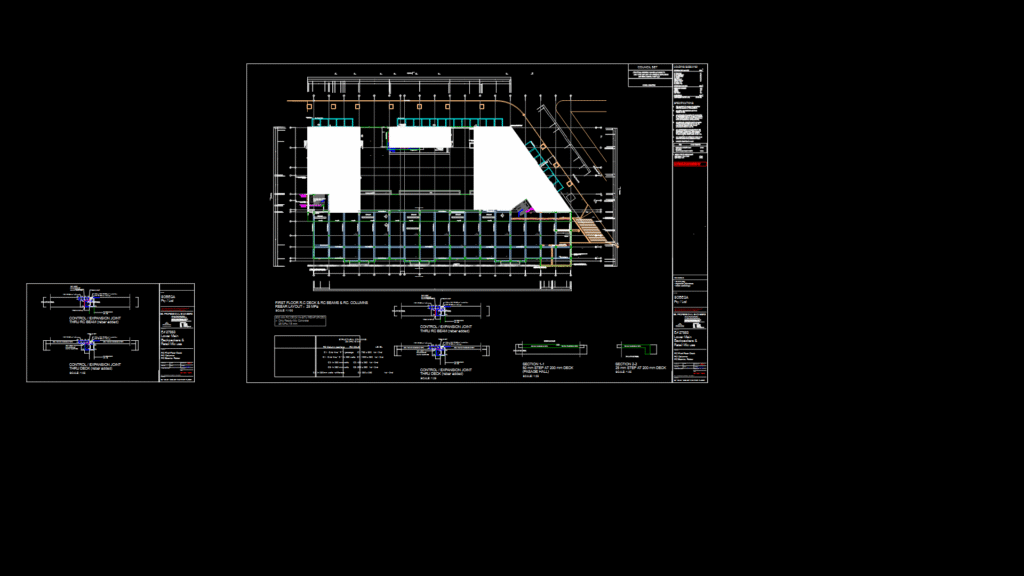

Structural engineering plan detailing reinforced concrete elements for the first floor of the Sobega project. The drawing shows the layout of a 300mm RC slab with 280x600mm reinforced concrete beams forming the structural grid. Multiple control expansion joints are detailed in sections at the bottom of the sheet, showing proper connection methods between concrete elements.

Key Specifications:
– 25 MPa concrete strength for RC slabs and beams
– 15 MPa concrete for grout and masonry pockets
– Minimum reinforcement cover: 50mm for beams (top/sides), 75mm for beam bottoms
– Design dead load factors: RC (24.0 kN/m²), screed (20.0 kN/m²), finishes (1.0 kN/m²)
– Design live load factors: floors (1.5 kN/m²), walkways (2.5 kN/m²), balconies (3.5 kN/m²)

The drawing includes detailed specifications for concrete curing (minimum 7 days) and water:cement ratio (less than 0.53). All structural work follows SABS 1200 GB standards with additional notes regarding soil bearing capacity (minimum 150 kPa).
