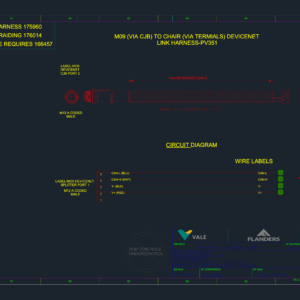

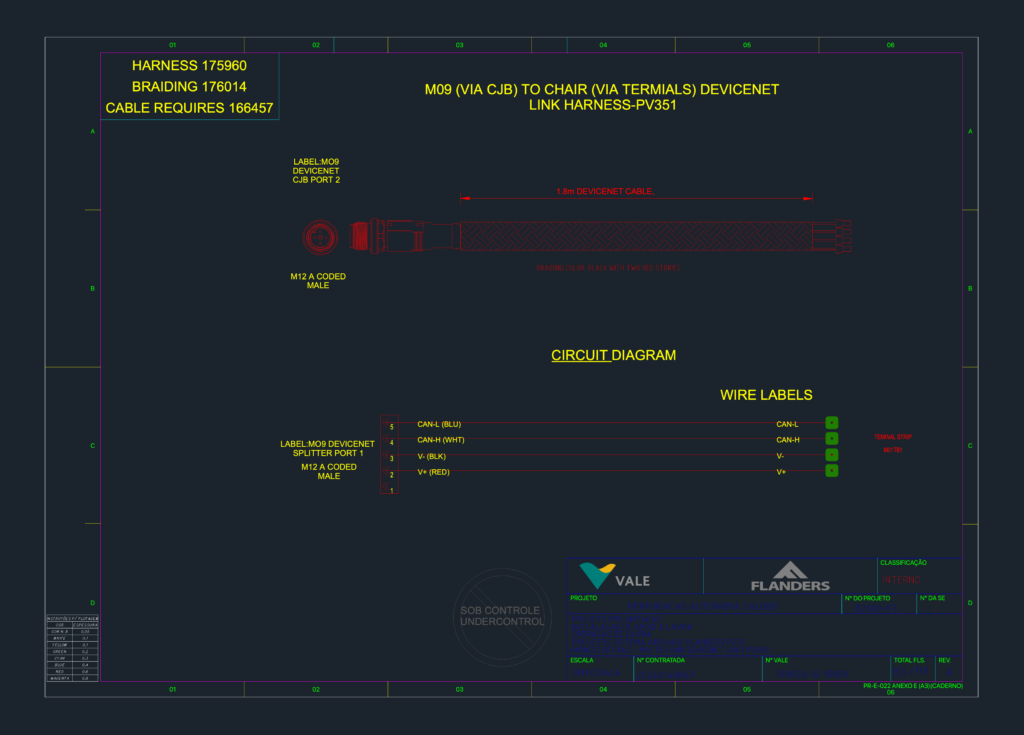

Harness assembly and wiring diagram for the M09 to Chair DeviceNet link, used on the Flanders PV351 autonomous drill at Vale Salobo. Includes a specific 1.8m DeviceNet cable detail with black braiding and two red stripes. You’ll find the M12 A-coded male connector layout along with a full circuit diagram for the M01TB1 terminal strip. Wires are color-coded: blue for CAN-L, white for CAN-H, blavk for V-, and red for V+.Covers all part numbers for the harness (175960), braiding (176014), and the cable itself (166457). Standard layout from the Salobo autonomous project, etc.
Flanders M09 to Chair DeviceNet Link Harness PV351 Detail
