CNC machine component layouts intended for laser or waterjet cutting from sheet stock. Layout includes gantry end plates, carriage mounts, and various bracketry for a small-scale desktop CNC or laser unit. The overall footprint of the nested parts is approx. 756mm x 655mm. Most mounting holes are designed for standard M5 or M6 fasteners, typical for DIY motion control projects. Geometry is clean with closed polylines, ready for CAM processing.material depending on required rigidity. I’ve included motor mount plates for NEMA sized motors based on the dia. of the central bores. Just the 2D flat patterns here, no 3D assembly

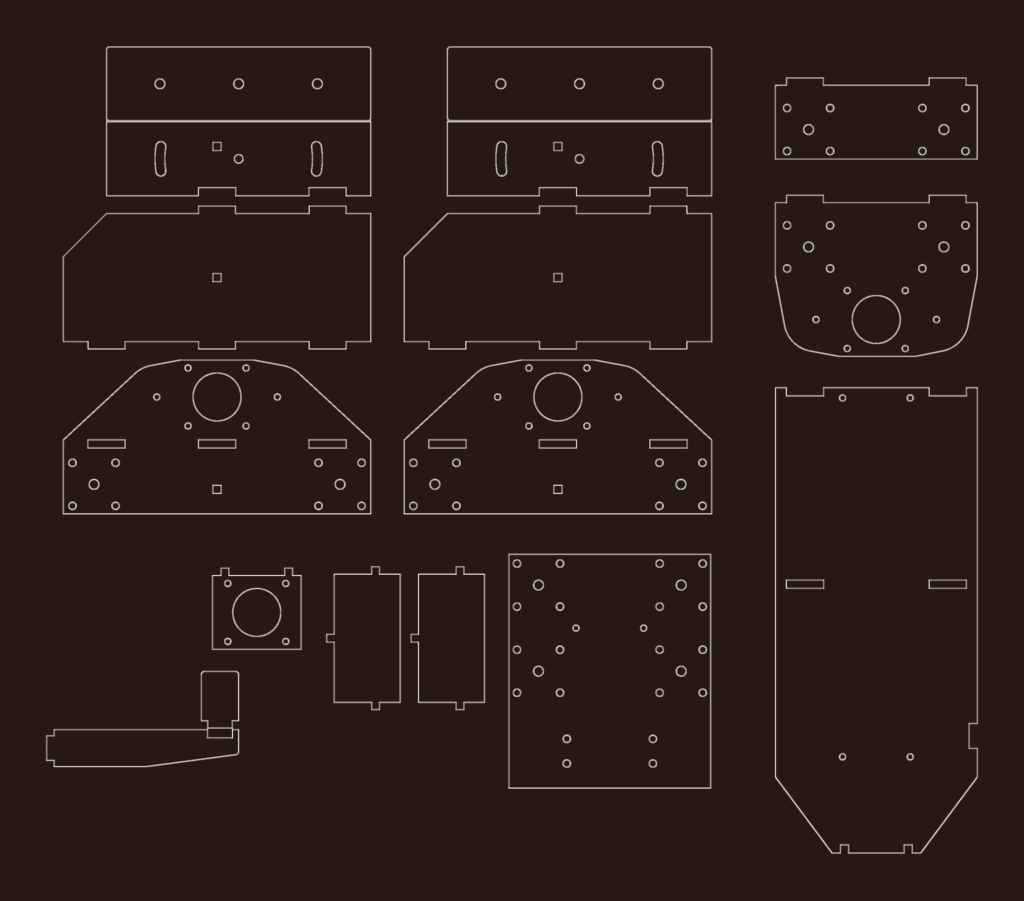

Flat pattern layout for CNC machine chassis components
