Forklift 3D DWG Model for AutoCAD

Forklift 3D DWG Model for AutoCAD

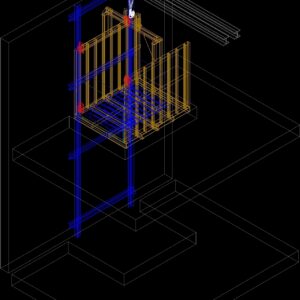

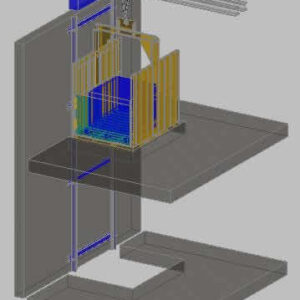

Forklift cage type with 2 access lifted by an electric keyboard with guides anchored to the wall

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Forklift cap Ton, Total weight:, Kgs., total, Unit., total, Ipe, Ipe, Cost, Cost, Cage walls, Cost, Cost, Cage floor, channel, channel, Bar pl., Flat bar, Pl diam, Pl diam., Access doors, Pl., channel, dog, Flat bar, Mesh acma, Pl diam., Pomelos, Main yoke, list of materials, item., brand, quantity, description, long, weight, observation, Elevator guide profile

Raw text data extracted from CAD file:

Montacargas (jaula) cap. 1 ton Peso total: 579 kgs. Total Unit. Unit. Total 1 1 1 579,3 2 3 v1 2 IPE 100 x 8,1 1400 11,3 22,7 IPE 100x55x4,1x5,7 4 C1 2 COST. 200 x 9,54 1780 17,0 34,0 Cost. 200x50x15x4 5 p1 16 PL 8 x 100 120 0,8 12,3 6 p2 4 PL 8 x 70 240 1,1 4,3 7 12 2 Paredes Jaula 13 14 C2 10 COST. 200 x 7,32 1500 11,0 109,8 Cost. 200x50x15x3 15 p3 4 PL 3 x 700 1600 26,9 107,5 16 17 Piso Jaula 18 19 cn1 4 CANAL 100 x 5,87 1400 8,2 32,9 Canal 100x50x4 20 p4 20 Barra Pl. 75 x 4,71 350 1,6 33,0 Barra plana 75x8 21 pd1 1 PL DIAM 4 x 33 1600 52,8 52,8 PL DIAM. 22 23 2 Puertas acceso 24 25 p5 4 PL. 5 x 600 900 21,6 86,4 Canal 100x50x4 26 cñ1 4 CAÑ 1 1/2" x 4,05 2321 9,4 37,6 Barra plana 75x8 27 mll1 2 Malla Acma 4 x 600 1200 23,0 46,1 PL DIAM. 28 12 Pomeles 5/8" Yugo principal LISTADO DE MATERIALES Item. Marca Cantidad Descripción Largo Peso Observación 92 50 20 12 181 584,23 630 1398 5 367,83 1 51 418,83 3081,17 3081,17 1400 2788,31 2500 283,51 5 5 perfil y guía de ascensores 5
