Formwork Details DWG Section for AutoCAD

Formwork Details DWG Section for AutoCAD

Slab forms – Sections

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

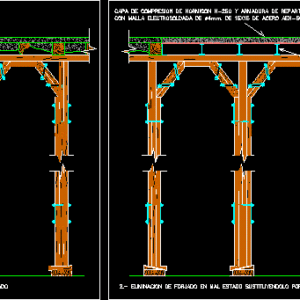

loss of resistant section of forged joists, replacement of floor joists, forged shoring, elimination of forged in poor condition replacing it with metal slab, compression layer of concrete armor cast, with electrowelded steel mesh, nervo metal plate, laminated profiles, ipn of sufficient size, for light cover

Raw text data extracted from CAD file:

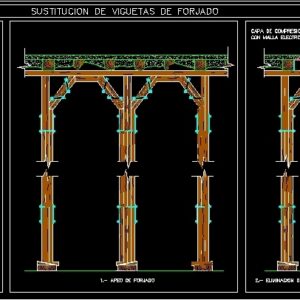

PERDIDA DE SECCION RESISTENTE DE VIGUETAS DE FORJADO SUSTITUCION DE VIGUETAS DE FORJADO 1.- APEO DE FORJADO 2.- ELIMINACION DE FORJADO EN MAL ESTADO SUSTITUYENDOLO POR FORJADO METALICO CAPA DE COMPRESION DE HORMIGON H-250 Y ARMADURA DE REPARTO CON MALLA ELECTROSOLDADA DE d4mm. DE 15X15 DE ACERO AEH-500T PLANCHA DE NERVO METAL PERFILES LAMINADOS IPN DE TAMANO SUFICIENTE PARA LA LUZ A CUBRIR

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, coffrage, details, DWG, forms, formwork, schalung, section, sections, shorings, slab, sliderail system, slipform, verschalung
