Foundations DWG Detail for AutoCAD

Foundations DWG Detail for AutoCAD

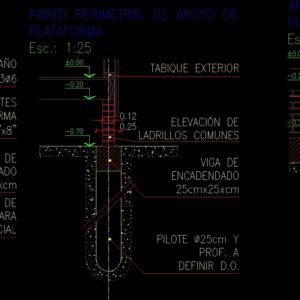

Several foundations – Wooden constructive details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Perimeter platform support, Connecting plate between perimeter platform wall, Support of straps apra platform, Reference axis for initial stake out, Chained beam, Pilote prof. Set d.o., Chained beam, Lifting of common bricks, Pilote prof. Set d.o., Irons from pile, Reinforcement in wall, Chained beam, Pvc pipe formwork, External partition, Platform support, Of perietral wall in piles chained beam

Raw text data extracted from CAD file:

±0.00 \A1;0.25 \A1;0.12 \A1;0.25 \A1;0.12 ±0.00 \C5;PARED PERIMETRAL DE APOYO DE PLATAFORMA \C3;Esc.: 1:25 -0.70 PLANCHUELA DE VINCULO ENTRE MURO PERIMETRAL Y 2"x8" DE PLATAFORMA APOYO DE TIRANTES APRA PLATAFORMA 2"x8" EJE DE REFERENCIA PARA REPLANTEO INICIAL VIGA DE ENCADENDADO 25cmx25xcm PILOTE d25cm Y PROF. A DEFINIR D.O. VIGA DE ENCADENDADO 25cmx25xcm ELEVACIÓN DE LADRILLOS COMUNES -0.40 PILOTE d25cm Y PROF. A DEFINIR D.O. HIERROS DESDE PILOTE REFUERZO 2d6 EN MURO VIGA DE ENCADENADO -0.70 -0.20 ENCOFRANDO DE CAÑO DE PVC 6"+3d6 TABIQUE EXTERIOR \C5;PILAR DE APOYO DE PLATAFORMA \C3;Esc.: 1:25 \C5;ANCLAJE DE MURO PERIETRAL EN PILOTES Y VIGA DE ENCADENADO \C3;Esc.: 1:25 3.991883645142245 3.991883645142245 3.844218241228013 3.844218241228013 -0.70 -0.20 -0.20 ±0.00 ±0.00

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Wood
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, constructive, DETAIL, details, détails de construction en bois, DWG, foundations, holz tür, holzbau details, Wood, wood construction details, wooden, wooden door, wooden house
