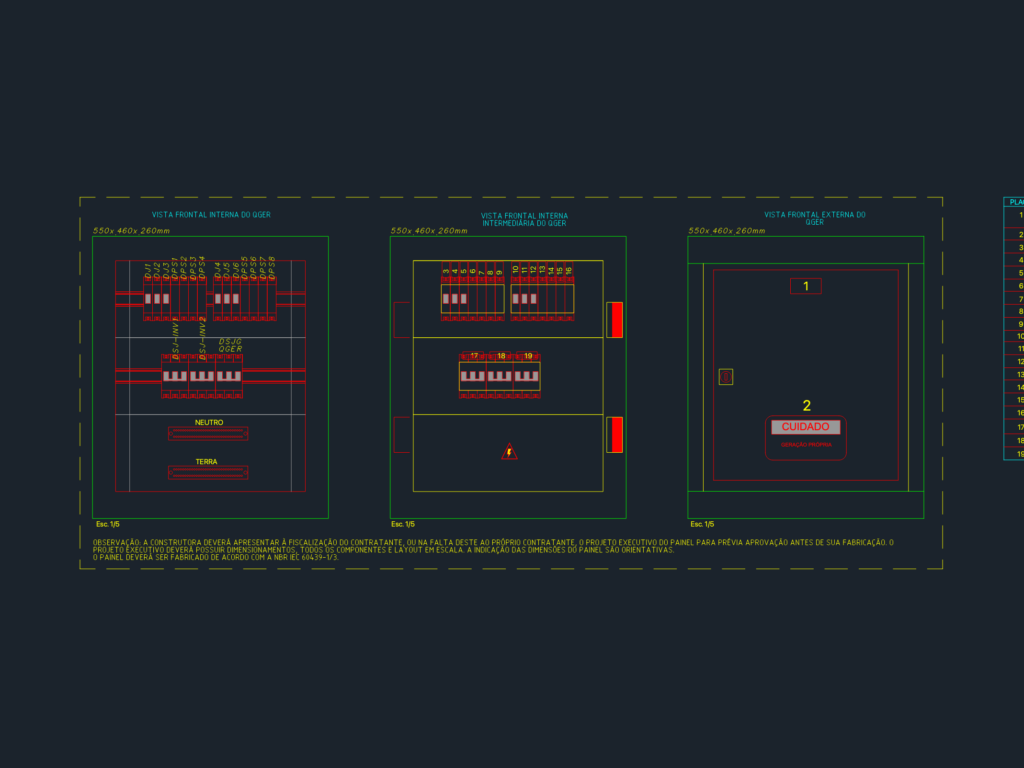

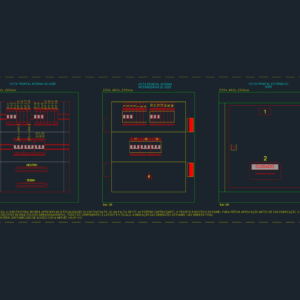

Frontal internal, intermediate and exteernal views of a solar power generation panel (QGER). It’s got the full layout for breakers, surge protection (DPS), and internal busbars for neutral and ground. Enclosure size is 550x460x260mm. Designed to meet NBR IEC 60439-1/3 standards. Incl. labels for inverters and the main switch gear.I’ve left the safety signage and component charts in too. Scale 1/5.
Frontal views of a solar power generation panel (QGER)
