Grease Trap DWG Block for AutoCAD

Grease Trap DWG Block for AutoCAD

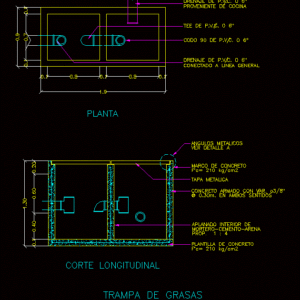

Grease trap .Lngitudinal cut

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Fat trap, scale, Longitudinal cut, plant, Concrete with var., in both ways, Concrete template, Flattened interior, Prop., metal lid, Concrete frame, Metal angles, see detail, Connected general line, Tee of p.v.c., Elbow of p.v.c., Drainage of p.v.c., Coming from kitchen, Drainage of p.v.c.

Raw text data extracted from CAD file:

0.40 1.30 0.60 0.1 0.20 1.9 0.1 0.9 0.7 0.1 0.1 0.8 0.1 0.8 0.1 TRAMPA DE GRASAS ESCALA 1 : 75 CORTE LONGITUDINAL 1.899999999999977 0.8000000000000149 5 5 5 5 0.20 PLANTA 5 0.9000000000000341 0.6999999999999886 0.8000000000000114 5 5 5 MORTERO-CEMENTO-ARENA CONCRETO ARMADO CON VAR. o3/8" @ 0.30m. EN AMBOS SENTIDOS / PLANTILLA DE CONCRETO APLANADO INTERIOR DE PROP. 1 : 4 F'c= 210 kg/cm2 TAPA METALICA MARCO DE CONCRETO ANGULOS METALICOS VER DETALLE A F'c= 210 kg/cm2 CONECTADO A LINEA GENERAL TEE DE P.V.C. 0 6" CODO 90 DE P.V.C. 0 6" DRENAJE DE P.V.C. 0 6" 5 / / / PROVENIENTE DE COCINA DRENAJE DE P.V.C. 0 6" /

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, Cut, DWG, einrichtungen, facilities, gas, gesundheit, grease, grease trap, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, trap, wasser bestimmung, water
