Grounded Electrical Outlet DWG Block for AutoCAD

Grounded Electrical Outlet DWG Block for AutoCAD

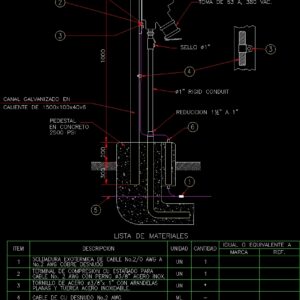

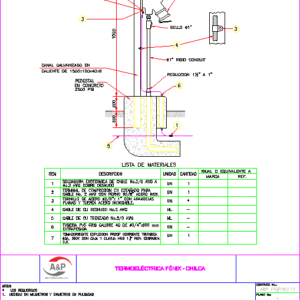

Socket Explosion Proof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

rev., Notes:, date, approve, verif., elab., description, review:, plan no., plane no:, contract no .:, from:, dib., fénix chilca thermoelectric plant, awg covers nude, exothermic cable awg welding, awg stranded cable, pvc pipe gray mm gauge, awg cu cable, tinned compression terminal for, cable no. awg with stainless steel stud., vac., pedestal, psi, specific, galvanized channel in, seal, hot dip galvanized sheet, screws of washers, steel screw with washers, flat stainless steel nut., missing you, hot from, material’s list, unity, description, item, equal equivalent, quantity, brand, ref., stainless steel nuts, rigid conduit, reduction, exploxion proof three-phase current with box hub plug ref: c.h., extra heavy, detailed engineering, typical installation detail ground, classified trifasic area, ar, j.z.c, ar, issued for internal review, issued for customer comments, j.z.c, the required, measured in millimeters in inches, archive:, j.z.c, ar, including customer feedback, approved for construction, j.z.c, ar, approved for construction, jaya, j.z.c, ar

Raw text data extracted from CAD file:

REV. NOTAS: FECHA APROB. VERIF. ELAB. DESCRIPCION REVISION: PLANO No. PLANO No: CONTRATO No.: DE: DE TITULO1CONTIENE TITULO2CONTIENE TITULO3CONTIENE No P DIB. TERMOELÉCTRICA FÉNIX - CHILCA A \A1;1000 \A1;200 \A1;300 No.2 AWG COBRE DESNUDO SOLDADURA EXOTERMICA DE CABLE No.2/0 AWG A CABLE DE CU TRENZADO No.2/0 AWG TUBERIA PVC GRIS CALIBRE 40 DE d3/4"x600 mm CABLE DE CU DESNUDO No.2 AWG TERMINAL DE COMPRESION CU ESTAÑADO PARA CABLE No. 2 AWG CON PERNO d3/8" ACERO INOX. TOMA DE 63 A, 380 VAC. 200 300 1000 PEDESTAL 2500 PSI EN CONCRETO CANAL GALVANIZADO EN SELLO d1" PLATINA GALVANIZADA EN CALIENTE TORNILLOS DE 3/8", ARANDELAS Y TORNILLO DE ACERO d3/8"x 1" CON ARANDELAS PLANAS Y TUERCA ACERO INOXIDABLE. 200x300x6, PERNADA AL CANAL, CON 2 1 5 6 4 3 CALIENTE DE 1500x100x40x6 LISTA DE MATERIALES UN UNIDAD UN UN ML UN ML UN 7 6 4 5 3 DESCRIPCION 1 2 ITEM 1 - - - * IGUAL O EQUIVALENTE A 1 1 CANTIDAD MARCA REF. TUERCAS DE ACERO INOXIDABLE 304 7 3 d1" RIGID CONDUIT REDUCCION 1½" A 1" \A1;TOMACORRIENTE EXPLOXION PROOF CORRIENTE TRIFASICA 63A, 380V CON CAJA Y CLAVIJA HUB 1.\S1/2;" REF: EBBRA604 C.H. EXTRAPESADA 19 1 FNX-TER-CH-PL-EL-007 3/19 INGENIERIA DETALLADA DETALLE TIPICO DE MONTAJE PUESTA A TIERRA TOMA TRIFASICA AREA CLASIFICADA A.R.R A.R.R J.Z.C J.Z.C A.R.R A.R.R 01-03-12 18-03-12 EMITIDO PARA REVISION INTERNA EMITIDO PARA COMENTARIOS DEL CLIENTE 3 A&P PO#760/12 J.Z.C J.Z.C * LOS REQUERIDOS 1. MEDIDAS EN MILIMETROS Y DIAMETROS EN PULGADAS ARCHIVO: FNX-TER-CH-PL-EL-007-3-19-R0.dwg B J.Z.C J.Z.C A.R.R A.R.R 28-04-12 INCLUIDO COMENTARIOS DEL CLIENTE APROBADO PARA CONSTRUCCIÓN 0 J.Z.C J.Z.C A.R.R A.R.R 28-06-12 APROBADO PARA CONSTRUCCIÓN 1 J.Y.A J.Z.C A.R.R A.R.R 21-01-13

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Steel, Other
Measurement Units
Footprint Area
Building Features
Tags	autocad, beleuchtung, block, DWG, electrical, equipamentos de iluminação, explosion, grounded, iluminação, l'éclairage, lamp, lâmpada, lampe, lantern, lanterna, lanterne, laterne, les luminaires, leuchten, lighting, Luminaires, outlet, proof, socket
