Gully Trap Detail

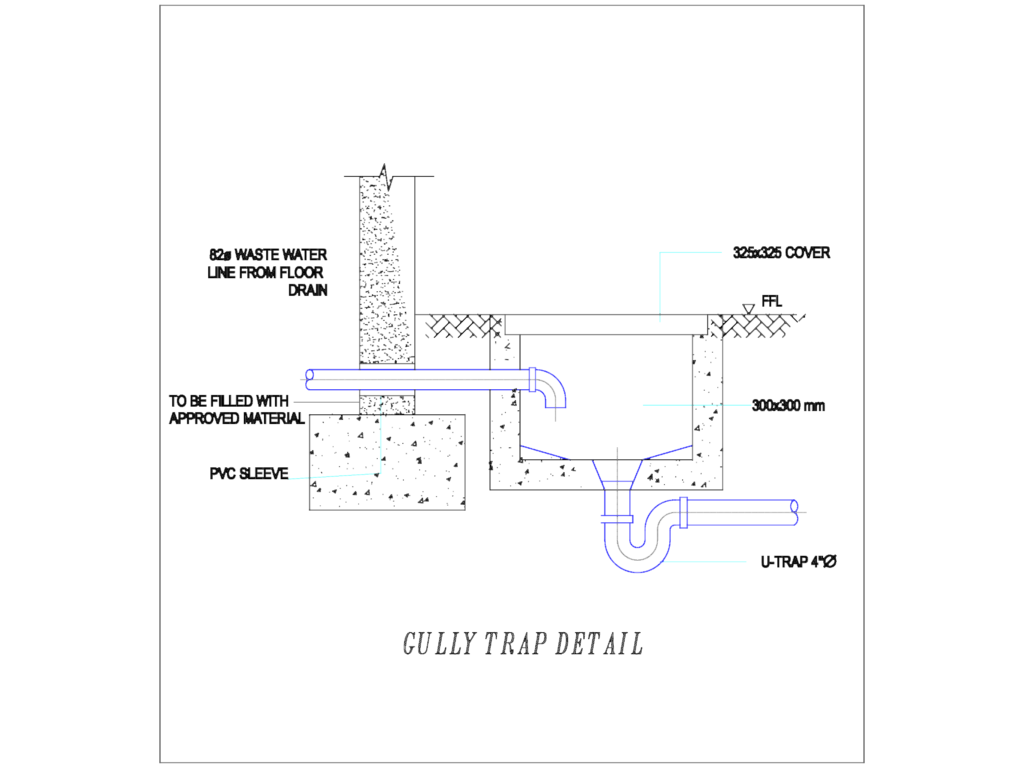

CAD section view of a gully trap including waste line, PVC sleeve, and U-trap assembly.

gully trap detail with u-trap and cover

FREE

File Details

File Type
DWG
Type
Detail
Language
English
Materials
Concrete, Plastic
Units
Metric
Uploaded by
Eng_Plans
Downloads
1 downloads
Category
Bathroom, Plumbing & Pipe Fittings, Residential
Published
Aug 4, 2026
