Haakon stacked air handling unit

Haakon 35,000 CFM stacked air handling unit CAD drawing with plan views, sections, and mechanical equipment schedules.

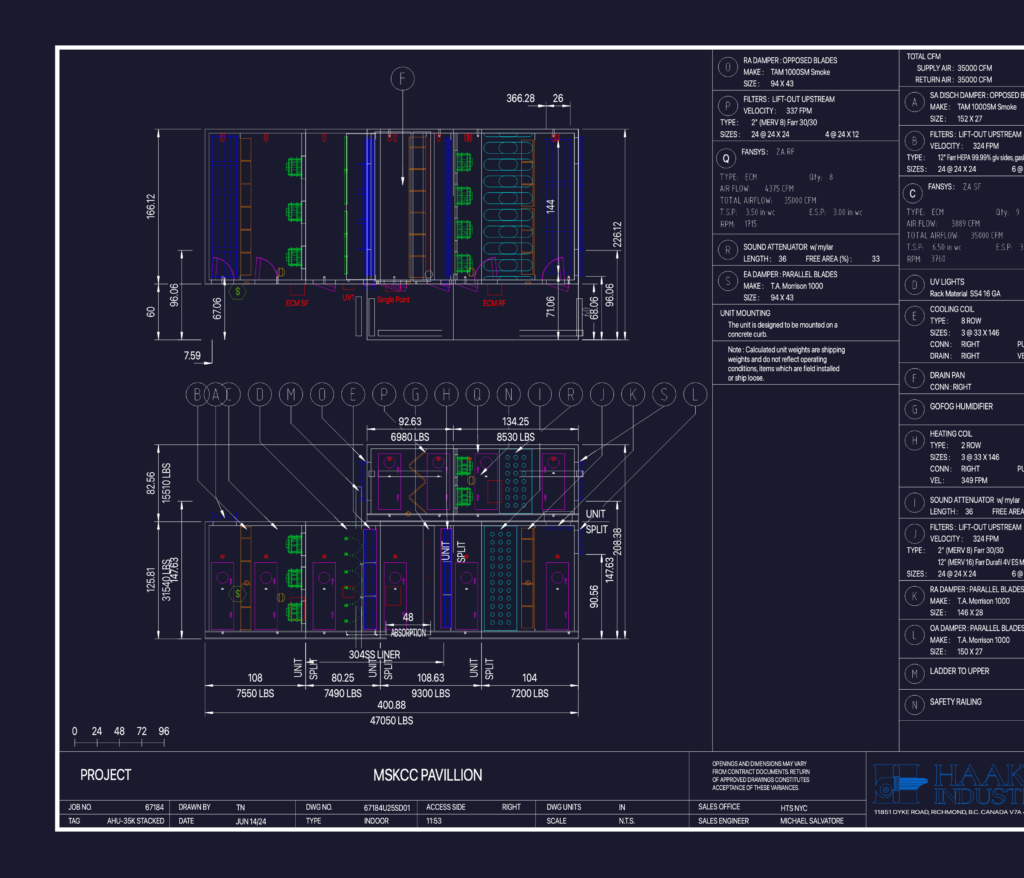

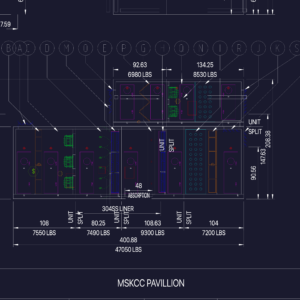

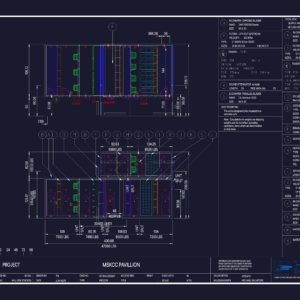

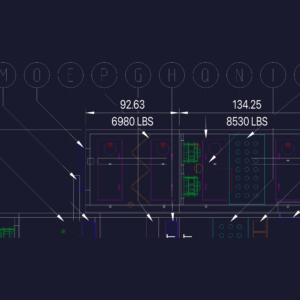

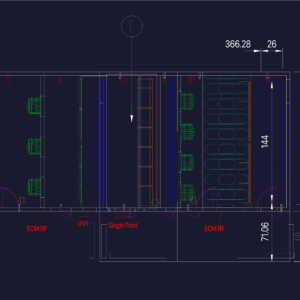

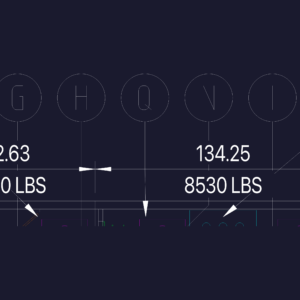

35,000 CFM Haakon stacked AHU layout for MSKCC Pavillion. includes coils, fans, dampers and attenuators.

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
English
Materials
Steel, Aluminum
Units
Imperial
Area
50 – 149 m² (538.2 – 1603.8 ft²)
Features
A/C
Uploaded by
Daniel
Category
Climate Conditioning
Published
May 23, 2026
Price $8.33
or

or get unlimited access from $7/mo

Tags

35000 CFM AHU Air Handling Unit cooling coil filter details Haakon heating coil hvac mep mechanical stacked unit ventilation layout
