Hotel, Motel, Lodging Hotel 2D DWG Plan for AutoCAD

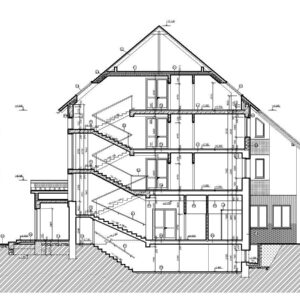

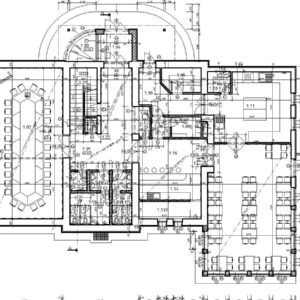

Plan, elevation and cross section view of motel. It has four floors and under ground with roofing. First floor plan has following areas – board room, kitchen, common bathroom, dining room, car parking lot. Second floor has following areas – 7 two single bed bed rooms, bath room, living room. Third floor has following areas – 7 two single bed bed rooms with attached bathrooms. Elevation and sectional views shows the complete construction details of hotel. The entire area is covered with landscaping and gardening. Total foot print area of the plan is approximately 30000 sq meters.
| Language | Spanish |
| Drawing Type | Plan |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood, Other |
| Measurement Units | Metric |
| Footprint Area | Over 5000 m² (53819.5 ft²) |
| Building Features | A/C, Deck / Patio, Car Parking Lot, Garden / Park |
| Tags | accommodation, bedroom, building, cabinet, DWG, hostel, Hotel, Lodging Hotel, motel, Restaurant |
