Housing Gas Installation DWG Block for AutoCAD

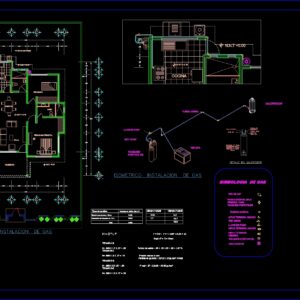

Gas installation in housing; isometric of gas, pipe calculate and distribution in plant

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Faculty of architecture design, Of gas, N.n.t, receiver, kitchen, bedroom, bath, dinning room, living room, Master bedroom, service yard, N.n.t, Nipple female terminal, Terminal nipple male, Stopcock, Tee union, Terminal nipple male, Conical nut, Curl of, Low pressure regulator for portable tanks, Gas symbol, Portable tanks, stove, Heater, Curl of, Conical nut, Stopcock, Gas installation, localization map, av., Street, do not. Plan, Architectural plans, flat:, Acotacion: m., scale:, Faculty of arq. design, Location, Acot:, scale:, date:, Gas installation plan, owner:, draft:, address:, flat:, House room, Faculty of architecture design, Symbology, Areas, lot, low level, top floor, total, lot, Lot type, authorization:, drawing:, N.n.t, kitchen, Capacity: recommended for wash basins at the same time, elbow, Hot water, Cold water elbow, gate valve, Of the heater, Union nut, Types of furniture, Consumption in gas l.p., Stove oven burners, Heater of deposit of l., total, Portable cylinder, according, Total section of fall real pressure in the network: loss in the real section, Portable tanks, Heater

Raw text data extracted from CAD file:

2.00 1.00 2.00 0.70 1.20 2.80 9.70 14.40 1.00 2.40 0.60 2.40 1.80 2.00 1.40 2.20 0.60 2.40 1.40 2.00 1.80 2.20 0.60 9.70 2.80 1.20 0.70 2.00 1.00 2.00 14.40 0.60 2.40 U A E M FACULTAD DE ARQUITECTURA Y DISEÑO 8.60 2.29 1.37 5 5 5 5 5 5 5 A B 5 5 5 5 5 5 5 5 5 5 \LINSTALACION DE GAS \l E B A 5 5 5 5 5 5 5 5 N.N.T +0.00 5 5 5 5 RECIBIDOR 5 5 5 COCINA RECAMARA BAÑO COMEDOR SALA RECAMARA PRINCIPAL PATIO DE SERVICIO N.P.T.+ 0.15 N.N.T +0.00 N.P.T.+ 0.15 5 NIPLE TERMINAL HEMBRA NIPLE TERMINAL MACHO LLAVE DE PASO TEE UNION NIPLE TERMINAL MACHO TUERCA CONICA Rizo DE 3/8″ REGULADOR DE BAJA PRESION PARA TANQUES PORTATILES C D F G 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 C D E F G SIMBOLOGIA DE GAS TANQUES PORTATILES ESTUFA CALENTADOR RIZO DE 3/8″ TUERCA CONICA LLAVE DE PASO \LISOMETRICO INSTALACION DE GAS \fArial Black|b0|i1|c0|p34;\H1.95x;\l CROQUIS DE LOCALIZACION AV. AV. CALLE CALLE H-1 No. DE PLANO PLANTAS ARQUITECTONICAS PLANO: ACOTACION: M. ESCALA: 1:50 FACULTAD DE ARQ. Y DISEÑO UBICACION ORIENTACION\Ftxt.shx|c0; ACOT: ESCALA: FECHA: PLANO INSTALACION DE GAS PROPIETARIO: 1:100 m PROYECTO: DIRECCIÓN: PLANO: CASA – HABITACION (1-2) FACULTAD DE ARQUITECTURA Y DISEÑO SIMBOLOGIA AREAS LOTE PLANTA BAJA PLANTA ALTA TOTAL 126.00 65.12 60.88 140.00 M2. M2. M2. M2. 16.30 8.60 LOTE LOTE TIPO N O T A S G E N E R A L E S AUTORIZACION: DIBUJO: 5 N.N.T +0.00 5 COCINA N.P.T.+ 0.15 Capacidad: 110 Litros, Recomendado para 2 regaderas y 1 lavabo trabajando al mismo tiempo CODO 9Oº AGUA CALIENTE CODO 90 º AGUA FRIA VÁLVULA DE COMPUERTA \LDETALLE DEL CALENTADOR TUERCA UNION Tipos de muebles Consumo en m3/hr. Gas L.P. Estufa 4 quemadores y Horno Calentador de Deposito de 110 L. 0.420 0.240 0.660 Total Cilindro Portatil Cilindro Portatil 0.85 5.4 1.7 10.7 19.3 F = 1/c² l F = 1 / .660² x 8.20 = .27 Según F = D = 13mm H = C ² L F B A C D E TRAMO A-B^J^JH= .660 X 1.7 X .27 = .30 % total de caida = .30 + .16 +.53 + .28 = 1.27 %^J TRAMO B-C ^JH= .660 X .9 X .27 = .16 Presión real en la red: ^J Perdida en gr./cm2 : 0.0127 x 27gr./cm² =.3429 TRAMO C-D ^JH= .660 X 3 X .27 = .53 P real = 27 – 0.3429 = 26.65 gr./cm²^J TRAMO D-E ^JH= .660 X 1.6 X .27 = .28 TANQUES PORTATILES CALENTADOR
