Wood panel housing project drawn at a 1:20 scale. The set includes architectural floor plans for a residence featuring a living room, dining area, kitchen, bathroom, and two bedrooms. It contains a roof plan, wall panel layout, and four exterior elevations showing the front, rear, and side profiles of the structure.

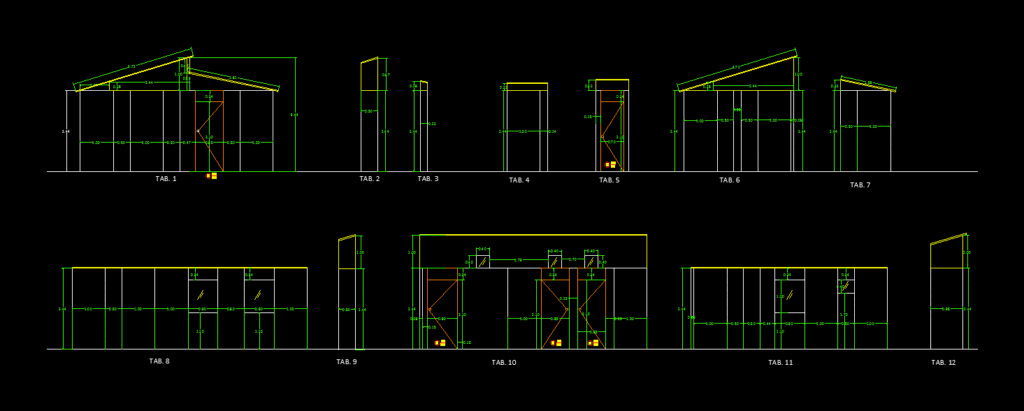

A significant portion of the file documents 12 structural partition sections labeled TAB 1 through 12. These detailed profiles illustrate the framing for wall panels, including specific dimensions for window openings and door frames within a structural wood system. The drawings include callouts for dimensions and placement of partitions. Planta de muro panel.
