Huawei Containerized Data Center Firefighting System Layout Plan

Name: Huawei Containerized Data Center Firefighting System Layout Plan
Brand: Designs CAD
SKU: 843760
Availability: InStock

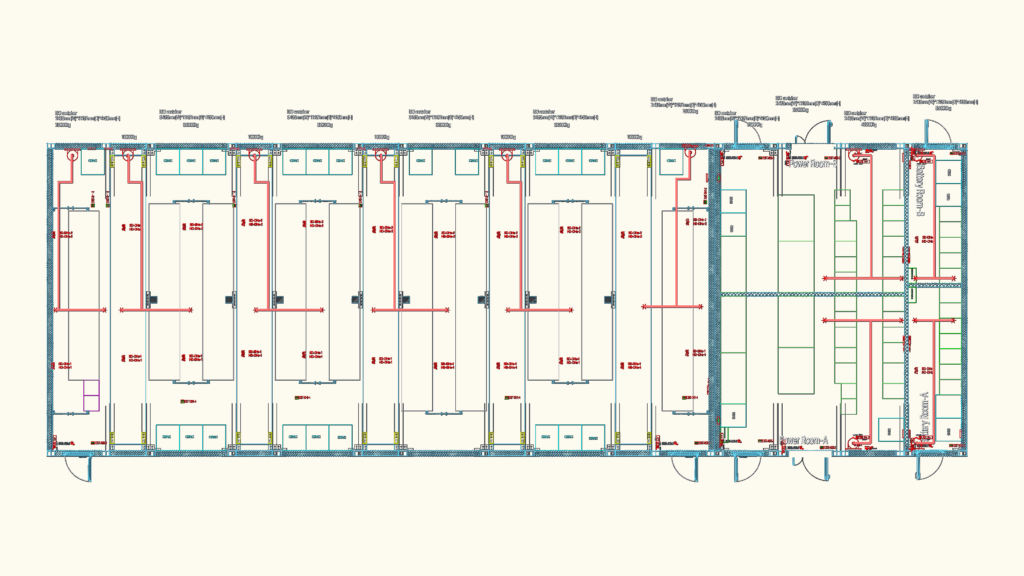

2D floor plan of a containerized data center showing firefighting pipes, VESDA detectors, and CRAC units.

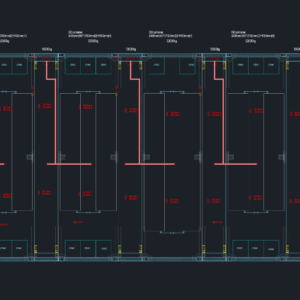

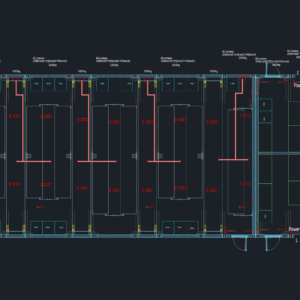

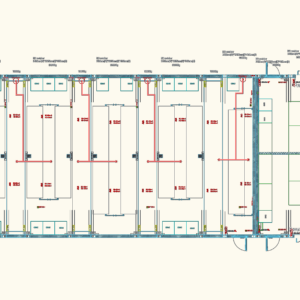

Firefighting system layout for Huawei ISO containerized data center modules with 4.15m clear height. Includes VESDA detection and CRAC unit integration for modular telecom Power and Battery rooms

FREE

File Details

File Type: DWG
Type: Plan
Language: English
Materials: Steel
Units: Metric
Area: 250 – 499 m² (2691.0 – 5371.2 ft²)
Features: A/C
Uploaded by: Daniel
Downloads: 2 downloads
Category: Mechanical, Electrical & Plumbing (MEP)
Published: May 8, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

battery room CRAC Data Center FIRE ALARM firefighting Huawei ISO container Layout Plan MEP power room VESDA
