HVAC System Autocad Drawing

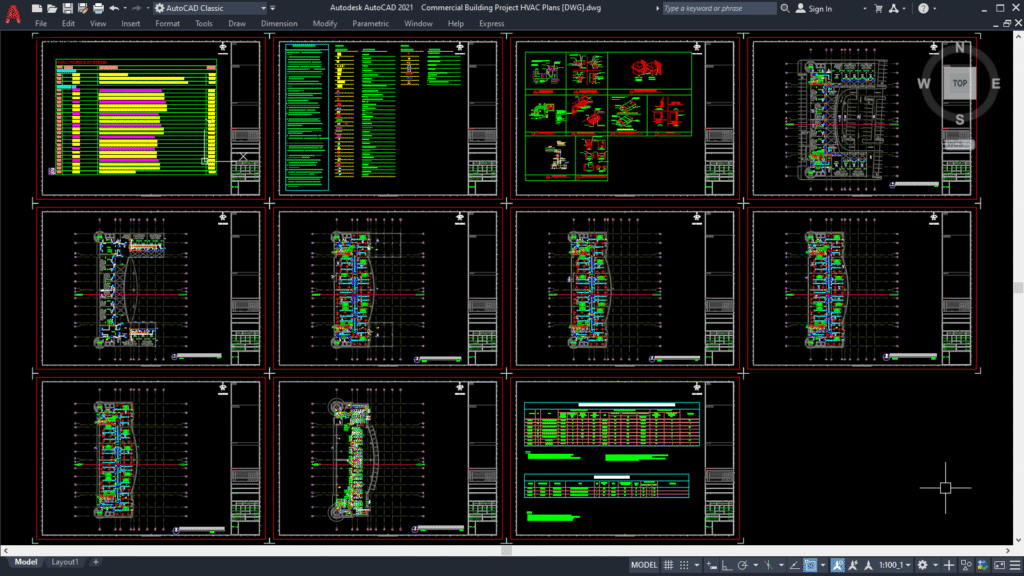

The following AutoCAD drawings are for an HVAC project, AutoCAD DWG files for the whole project. It is a commercial building that includes administrative offices and stores.
List of HVAC project drawings:
Master Ground Floor Hvac Works Plan.
Master Mezzanine Floor Hvac Works Plan.
Master First Floor Hvac Works Plan.
Master Second Floor Hvac Works Plan.
Master 3rd Floor Hvac Works Plan.
Master 4th Floor Hvac Works Plan.
Master Roof Floor Hvac Works Plan.
HVAC Works Schedules.
Autocad 2018 Version
| Language | English |
| Drawing Type | Full Project |
| Category | Drawing with Autocad |
| Additional Screenshots | |
| File Type | dwg, zip, Image file |
| Materials | N/A |
| Measurement Units | Metric |
| Footprint Area | N/A |
| Building Features | |
| Tags | hvac, HVAC full project |
