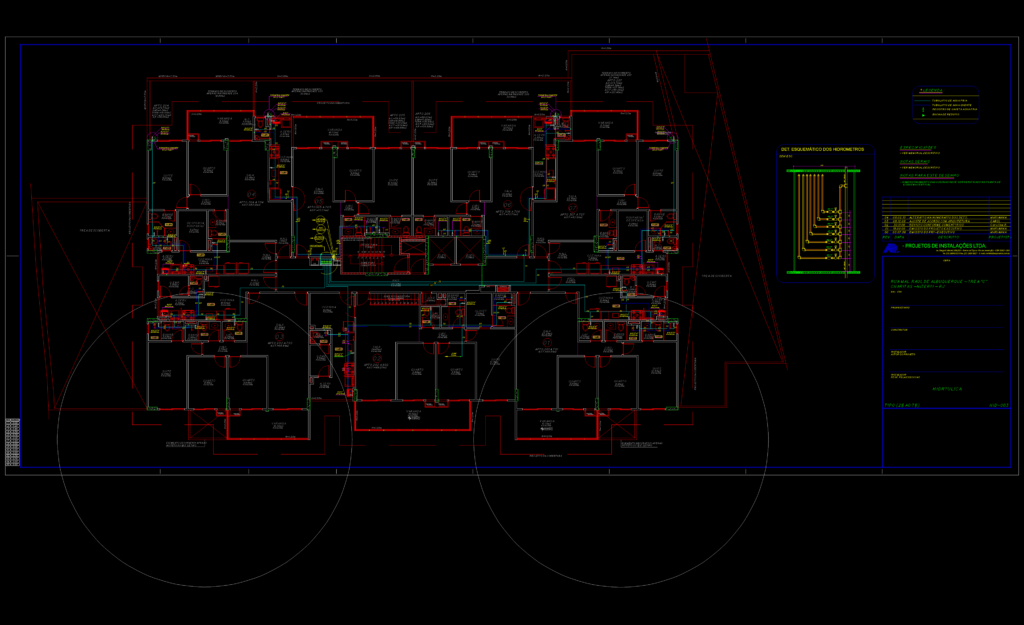

Hydraulic installation plan for a typical residential floor (units 01 to 07). Includes piping layout for cold and hot water distribution, riser locations, and a schematic detail for the building’s water meter bank (hidrômetros). Planta de instalações hidráulicas do pavimento tipo (2º ao 7º) com detalhamento de barrilete e medidores. – Scale: 1:50 – Components: AF (Agua Fria), AQ (Agua Quente), vertical riser shafts, meter manifold schematic – Layout: 7 apartment units per floor including suites, kitchens, and service areas
Hydraulic Installation Plan for Typical Apartment Floors 2nd to 7th
