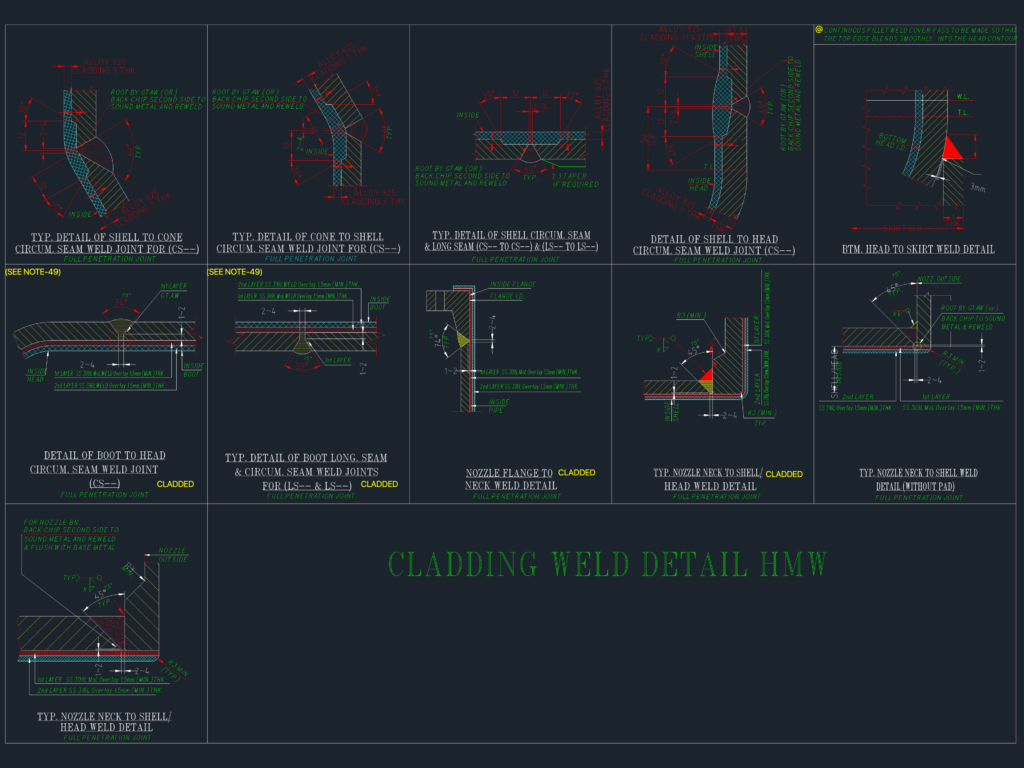

mostly cladding weld details for vessel shells & nozzles, covering things like shell-to-cone and boot-to-head joints. We’ve included specific callouts for SS 309L MoL and SS 316L weld overlays (1.5mm min) plus some Alloy 825 cladding at 3mm thk. Sections show full penetration joints, GTAW root passes, back chipping, & more. Incl. details for nozzle necks both with and without pads, plus flange-to-neck connections. Most views show the 1:3 taper, head contours, and multi-layer overlay requirements. Standard DWG template for vessel fabrication drawings.
Industrial cladding weld joint details for shell and nozzle joints
