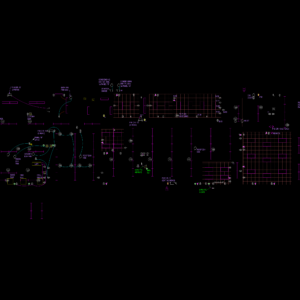

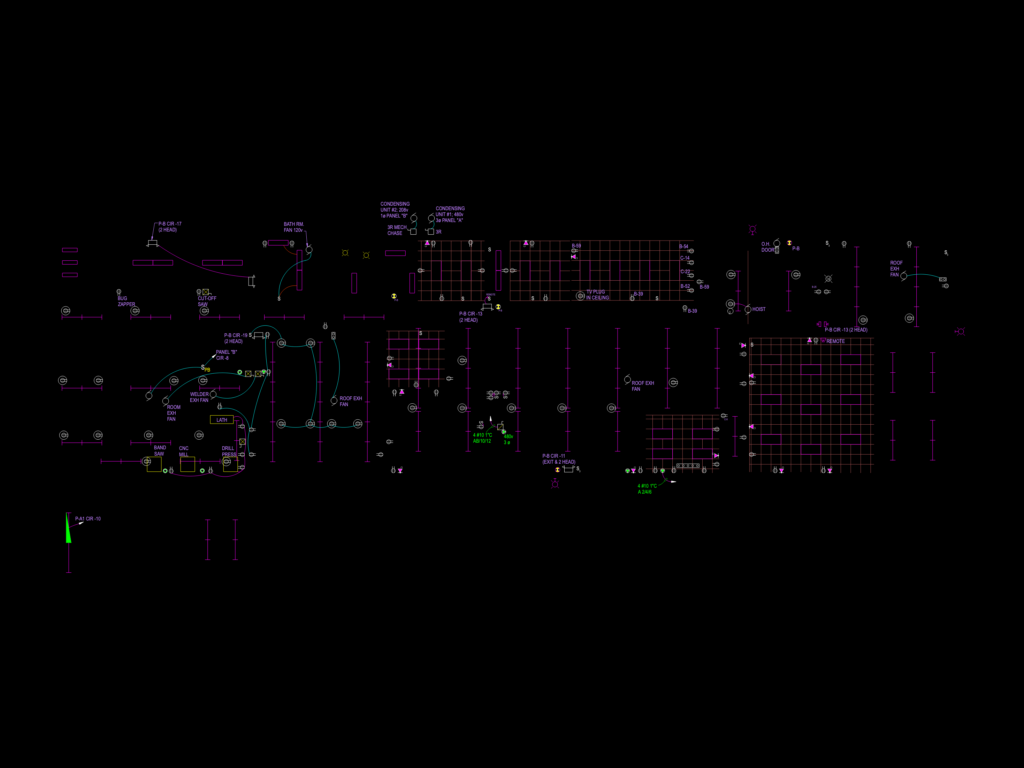

Electrical layout for a workshop space. Covers equipment power for CNC mills, saws, and drill presses along with circuiting for 480v & 208v panels. I’ve included partial one-line diagram for the mech chase and exhaust fans.
Industrial Workshop Electrical Plan & One-Line Diagram DWG
