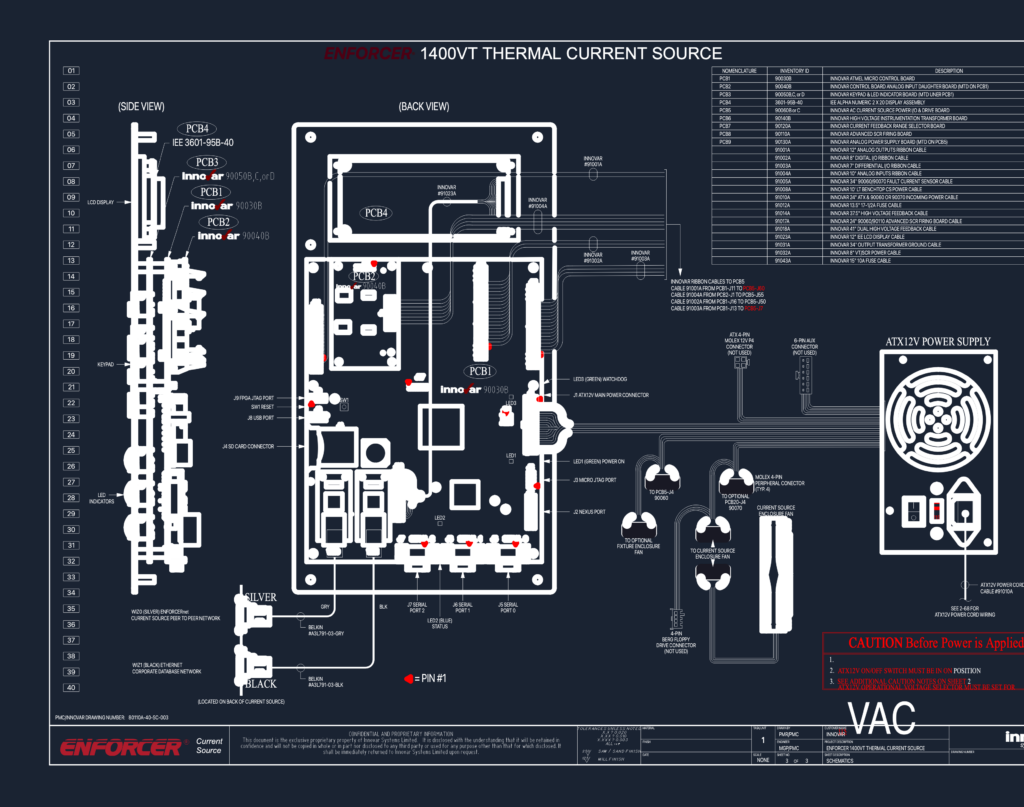

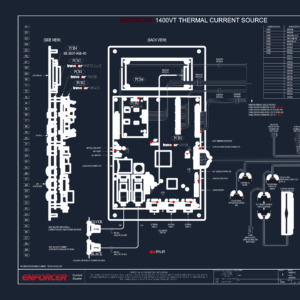

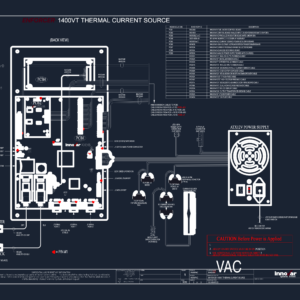

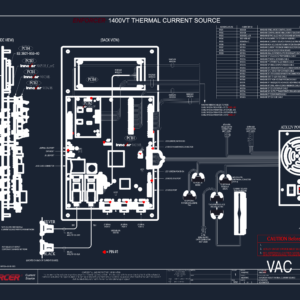

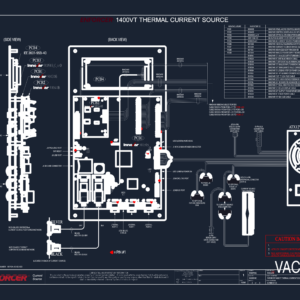

Schematics for the Enforcer 1400VT Thermal Current Source by Innovar Systems Limited. Includes side and back elevations detailing internal component placement and board stack-up. Assembly features 9 primary PCBs incl. the Atmel micro control board (90030B), SCR firing board (90110A), and high voltage instrumentation transformer (90140B). Power section details an ATX12V supply with associated 4-pin Molex & 6-pin aux connectors. Connectivity ports cover J9 FPGA JTAG, J8 USB, J4 SD card, and triple serial ports (J5-J7). Wiring schedule covers 20+ specialized cables and ribbon assemblies for I/O and feedback lops. Detailed nomenclature list included for all inventory IDs from 90030B to 91043A.
Innovar ENFORCER 1400VT Thermal Current Source Internal Layout and Wiring
