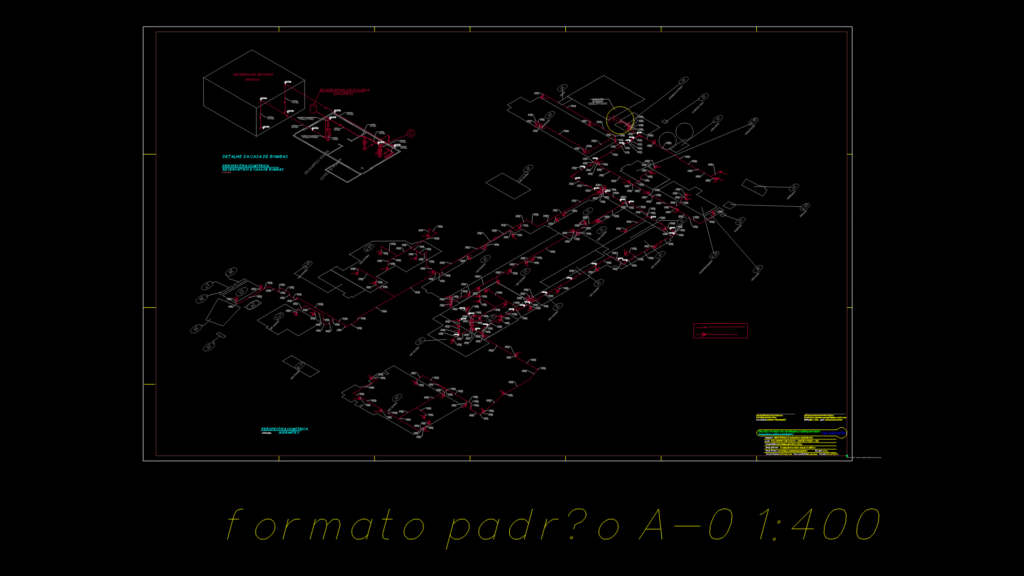

Comprehensive isometric representation of a fire protection system for the Vicunha Imóveis industrial complex located in Simões Filho, Brazil. The drawing depicts the complete hydrant network layout with 88+ numbered fire hydrants (H-01 through H-88) distributed throughout multiple industrial buildings and facilities.
Key System Components:
– Central fire water reservoir with 9,000 m³ capacity
– Pump house with dual redundancy (electric motor and combustion engine pumps)
– 200-liter priming tank for the pump system
– Extensive underground and above-ground piping network with elevation changes from -5.00m to +17.30m
– Water flow direction indicators showing hydraulic pathways to the most hydraulically disadvantaged points
Site Information
– Total site area: 393,726.00 m²
– Built area: 43,846.31 m²
– The complex includes industrial buildings, administrative areas, guardhouse, weighing station, substation, pump house, dining hall, workshops, and other support facilities
This drawing is part of a technical fire safety project (referenced as FAT 2021 04/50) in compliance with Brazilian fire protection standards.
