Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

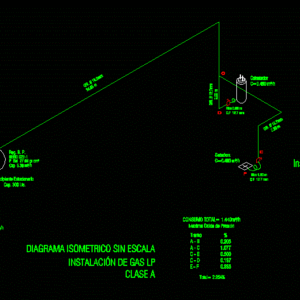

Electrical connection, Knife switch, measurer, Container stationary cap. Lts., L. 11. S.n.b., Reg. B. P., Rego, P. Salt. Gr, chap., Crk, Crl, Heater, C.f. Mm, Crl, C.f. Mm, dryer, C.f. Mm, Crl, Isometric diagram without scale lp class gas installation, Maximum consumption pressure drop, section, Technological institute of pachuca architecture facilities in buildings gas installation acot. Mts. Scale: sn

Raw text data extracted from CAD file:

Re ACOMETIDA ELÉCTRICA INTERRUPTOR DE CUCHILLAS 2 X 20 MEDIDOR Recipiente Estacionario Cap. 300 Lts. L. LL. 2.80m S.N.B. Reg. B. P. REGO 922-1 P. Sal. 27.94 gr cm² Cap. 5.38 m³/h CRK d 19.1mm 5.50 m A CRL d 19.1mm 24.35 m Calentador C=0.480 m³/h Rizo 0.50 m C.F. 12.7 mm C D E CRL d 12.7mm 2.00 m CRL d 12.7mm 7.30 m \W1.08599; Rizo 1.50 m C.F. 12.7 mm Secadora C=0.480 m³/h E4QHC C=0.480 m³/h \W1.08599; Rizo 0.50 m C.F. 12.7 mm CRL d 12.7mm 3.00 m DIAGRAMA ISOMETRICO SIN ESCALA INSTALACIÓN DE GAS LP CLASE A B F CONSUMO TOTAL= 1.440m³/h Maxima Caida de Presión Tramo A - B A - C C - E C - D E - F % 0.205 1.077 0.500 0.137 0.335 Instituto Tecnologico de Pachuca Arquitectura Instalaciones en los Edificios 2 Instalación de Gas GAS-02 Acot. mts. Escala: SN Total= 2.254%
