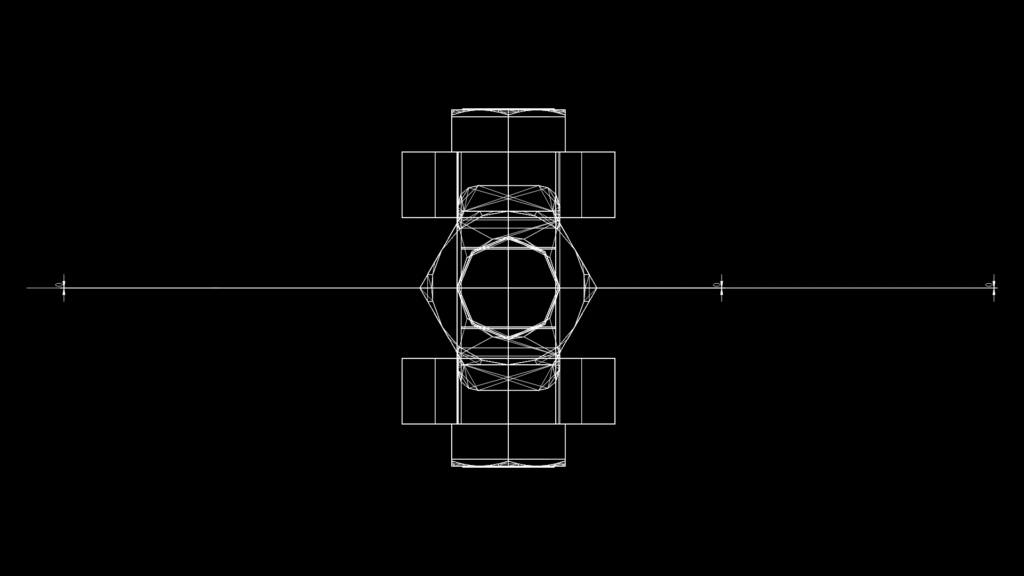

Detailed 3D solid model of a standard jaw-to-jaw turnbuckle designed for tension adjustment in cable and wire rope systems. This industrial fastener features:
• Symmetric configuration with jaw terminals at both ends
• Hexagonal body with internal threading for tension adjustment
• Standard clevis-type jaw ends with pin/hole connection points
• Central body designed for manual adjustment using wrenches
The model includes dimensional reference lines indicating the overall length and orientation. This type of turnbuckle provides a secure mechanical connection while allowing precise tension adjustment through rotation of the central hexagonal body. The jaw-to-jaw design permits angular flexibility at connection points, making it suitable for applications where alignment may vary during operation.
The 3D solid modeling approach captures all critical geometrical elements for manufacturing or assembly integration. This component is typically manufactured from forged or machined steel with load ratings determined by body diameter and material specifications.
