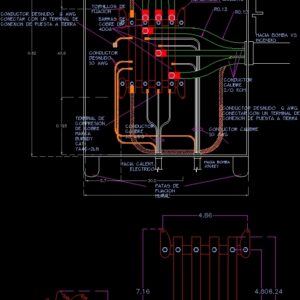

Junction box to derive a power supply. Copper bars Himmel cabinet.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

low level, esc., low level, esc., junction box, reversible door opening, double bar lock, brand: legrand, ref:, copper bars of, insulation breakout terminals, towards heat. electric, towards pump jockey, comes from substation, towards bomb vs fire, driver caliber kcm, awg caliber, awg caliber driver, copper compression terminal brand burndy cat:, fixing screws, mechanical terminal brand burqa type qqa, naked driver awg connect with a ground terminal, awg naked driver, naked driver awg connect with a ground terminal, wall fixing legs, kit of copper bars of terminals of insulating distribution mark legrand ref:, connections Box

Raw text data extracted from CAD file:

AQ-01 PLANTA BAJA ESC. 1:100 D-01 \A1;0.27 \A1;1.63 \A1;6.24 \A1;7.16 \A1;4.86 \A1;0.51 \A1;4.80 AQ-01 PLANTA BAJA ESC. 1:100 D-01 \A1;0.61 \A1;0.82 \A1;R0.12 \A1;R0.12 CAJA DE DERIVACIONES IP66 PUERTA REVERSIBLE APERTURA 180° CERRADURA DOBLE BARRA MARCA: LEGRAND REF: 36261 BARRAS DE COBRE DE 400A BORNES DE REPARTICION AISLANTE HACIA CALENT. ELECTRICO \A1;R0.12 HACIA BOMBA JOCKEY VIENE DE SUBESTACION HACIA BOMBA VS INCENDIO CONDUCTOR CALIBRE 2/0 KCM \A1;CONDUCTOR CALIBRE \A1;2 /0 AWG CONDUCTOR CALIBRE 10 AWG CONDUCTOR CALIBRE 10 AWG TERMINAL DE COMPRESION DE COBRE MARCA BURNDY CAT: YA4C-2LN TORNILLOS DE FIJACION TERMINAL MECANICA MARCA BURNDY TIPO QQA \A1;30.0 \A1;0.7 \A1;43.0 \A1;0.195 \A1;0.195 CONDUCTOR DESNUDO 6 AWG CONECTAR CON UN TERMINAL DE CONEXION DE PUESTA A TIERRA CONDUCTOR DESNUDO 6 AWG CONECTAR CON UN TERMINAL DE CONEXION DE PUESTA A TIERRA CONDUCTOR DESNUDO 10 AWG CONDUCTOR DESNUDO 6 AWG CONECTAR CON UN TERMINAL DE CONEXION DE PUESTA A TIERRA PATAS DE FIJACION MURAL 0.27 5 5 5 5 5 5 KIT DE BARRAS DE COBRE DE 400A Y BORNES DE REPARTICION AISLANTE MARCA LEGRAND REF: 37308 SE-01 CAJA DE CONEXIONES S/E 01
