Kitchen Wash Basin DWG Section for AutoCAD

Kitchen Wash Basin DWG Section for AutoCAD

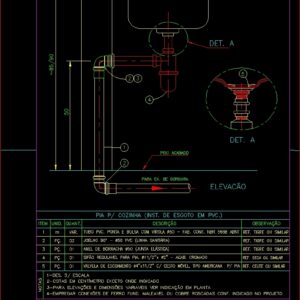

Kitchen wash basin . installation details – Section

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

cvrd, leaf:, rev .:, cvrd:, minerconsult:, iron castings. maleavel or copper threaded conf. indicated in the project., Variable dimensions, scale, in centimeter except where indicated, grades, for cx. of fat, description, Praça., Praça., Praça., item, Items., var., quant., ref. tiger or similar, ref. celite or similar, ref. deca or similar, finished floor, elevation, Note, det., sink kitchen sink in, pvc tube tip bag with ferrule fab. conf. nbr abnt, pvc knee, rubber ring, adjustable siphon for sink. finish chrome, drain valve American type basket sink

Raw text data extracted from CAD file:

CVRD FOLHA: REV.: N° CVRD: N° MINERCONSULT: 4-EMPREGAR CONEXÕES DE FERRO FUND. MALEAVEL OU COBRE ROSCADAS CONF. INDICADO NO PROJETO. 3-PARA ELEVAÇÕES E DIMENSÕES VARIAVEIS VER INDICAÇÃO EM PLANTA 1-DES. S/ ESCALA 2-COTAS EM CENTÍMETRO EXCETO ONDE INDICADO NOTAS PARA CX. DE GORDURA DESCRIÇÃO ~85/90 50 PÇ. 5 PÇ. 4 3 2 1 PÇ. PÇ. m. ITEM UNID. 01 VAR. 01 01 02 QUANT. 1 2 2 4 REF. TIGRE OU SIMILAR REF. TIGRE OU SIMILAR REF. TIGRE OU SIMILAR REF. CELITE OU SIMILAR REF. DECA OU SIMILAR PISO ACABADO ELEVACÃO OBSERVAÇÃO DET. A DET. A 5 PIA P/ COZINHA (INST. DE ESGOTO EM PVC.) TUBO PVC. PONTA E BOLSA COM VIROLA Ø50 - FAB. CONF. NBR 5688 ABNT JOELHO 90º - Ø50 PVC (LINHA SANITÁRIA) ANEL DE BORRACHA Ø50 (JUNTA ELÁSTICA) SIFÃO REGULAVEL PARA PIA. Ø11/2''x Ø2" - ACAB. CROMADO VÁLVULA DE ESCOAMENTO Ø4''x11/2'' C/ CESTO MÓVEL, TIPO AMERICANA P/ PIA 3

Language	Portuguese
Drawing Type	Section
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, basin, details, DWG, einrichtungen, facilities, gas, gesundheit, installation, kitchen, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, section, wash, wasser bestimmung, water
