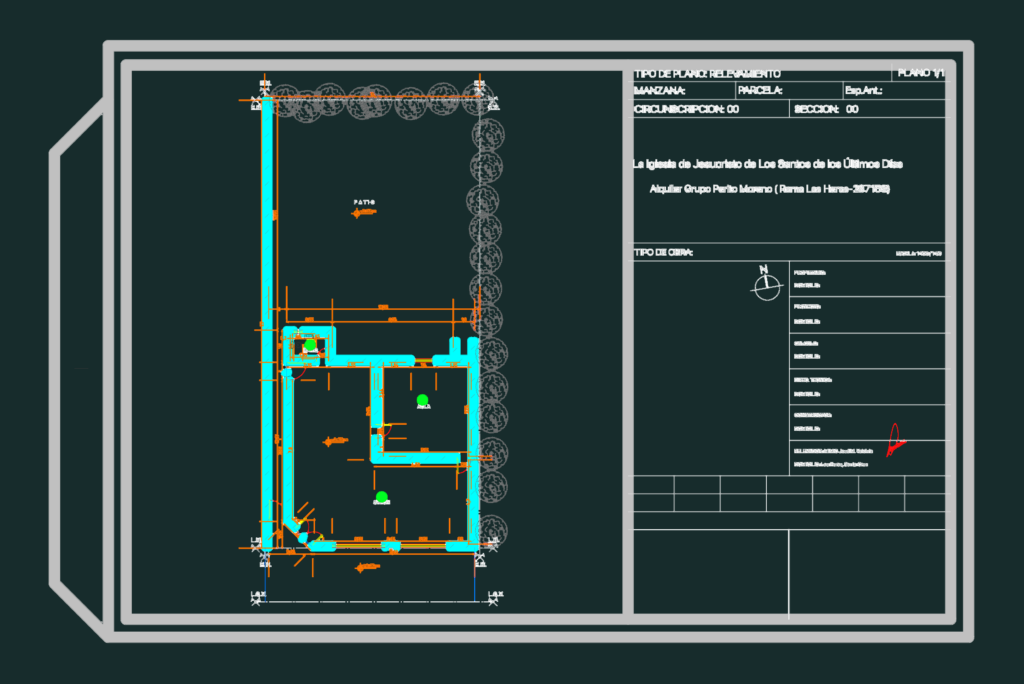

Architectural floor plan survey for the LDS Chapel (Rama Las Heras) in Santa Cruz. Layout features a main hall, classroom space, bathroom, and a rear patio area. I’ve noted the property boundaries (L.M. and E.M.) and internal floor level variations. Dimensions and axes are clearly defined for the walls and joinery. Scale is set at 1:100 and 1:50 within the original survey. Complete title block included with professional registration and project data. Plano de relevamiento para capilla religiosa.
LDS Chapel Perito Moreno Religious Building Floor Plan
