Lighting and seating plan for Auditorium Le Prévost

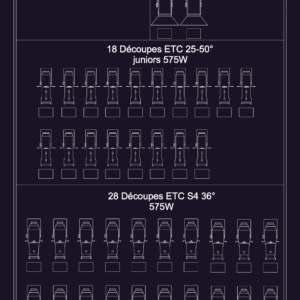

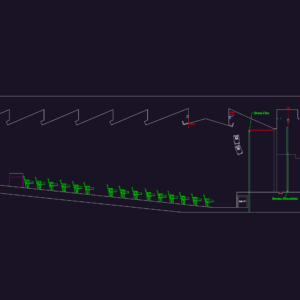

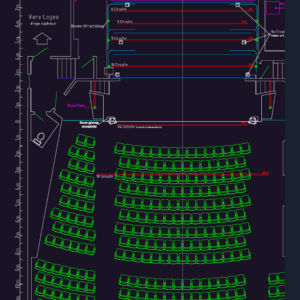

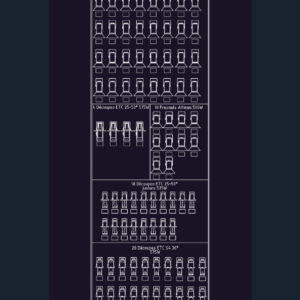

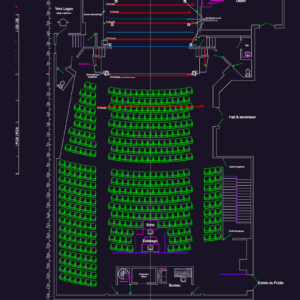

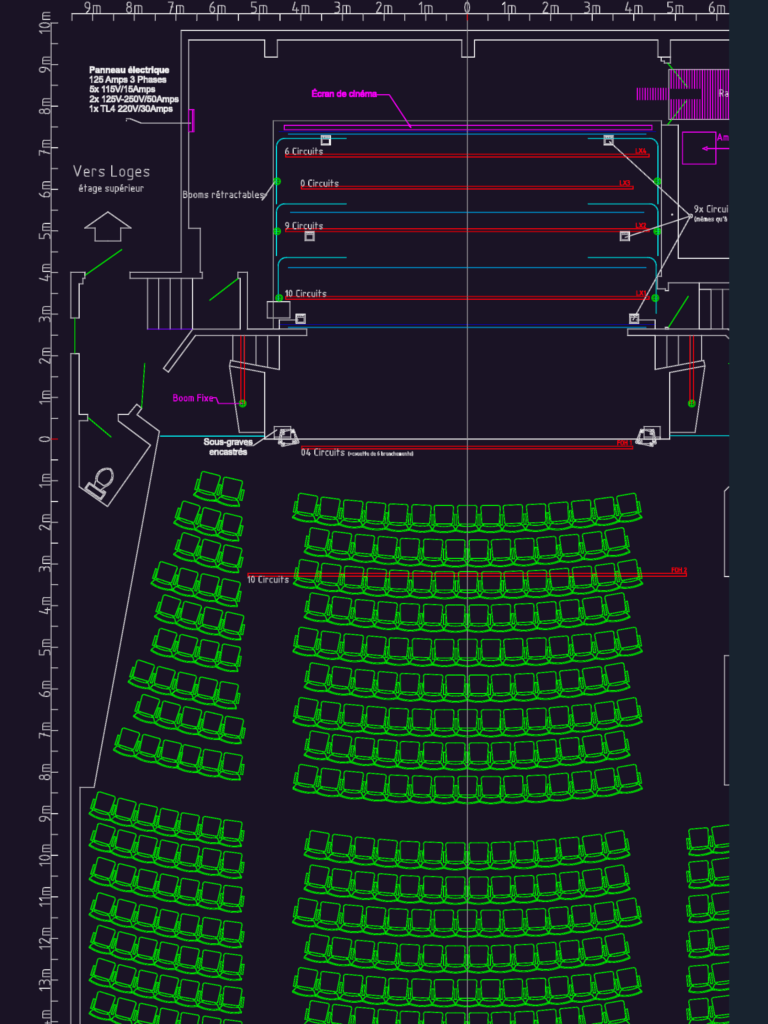

Technical layout for the Maison de la Culture de Villeray auditorium. I’ve included the lighting plot with LX/FOH positions and full circuit counts, plus specific specs for ETC and Altman fixtures. Seating plan, sound booth, and projection room are all shown in plan and section. Plan d’aménagement technique et de sonorisation pour l’Auditorium Le Prévost.

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
French
Materials
Steel, Wood, Plastic
Units
Metric
Area
2500 – 4999 m² (26909.8 – 53808.7 ft²)
Features
Elevator
Uploaded by
CAD Workshop
Category
Commercial, Entertainment, Leisure & Sports
Published
Jun 5, 2026
Price $4.00
