Luminaire DWG Block for AutoCAD

Luminaire DWG Block for AutoCAD

Recessed luminaires dirigible

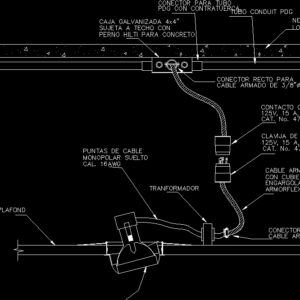

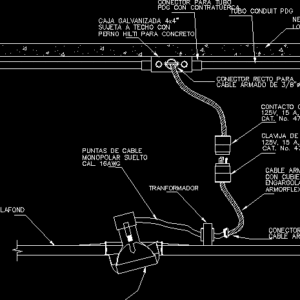

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

straight connector for, wire rope, conduit pipe pdg, monopolar loose, lime., ceiling, transformer, galvanized box, ceiling with, cable tips, hilti concrete bolt, pdg with counter nut., pipe connector, armed Cable, with metal cover, Mca. viakon, wire rope, straight connector for, type binding, contact with half turn insurance, with physical soil., concrete ribbing, mezzanine slab, cat. do not. leviton brand., back pin, concrete ribbing, mezzanine slab

Raw text data extracted from CAD file:

CONECTOR RECTO PARA CABLE ARMADO DE 3/8"d TUBO CONDUIT PDG MONOPOLAR SUELTO CAL. 16AWG PLAFOND TRANFORMADOR CAJA GALVANIZADA 4x4" SUJETA A TECHO CON PUNTAS DE CABLE PERNO HILTI PARA CONCRETO PDG CON CONTRATUERCA. CONECTOR PARA TUBO CABLE ARMADO 3X12AWG, CON CUBIERTA METALICA ARMORFLEX, MCA. VIAKON CABLE ARMADO DE 3/8"d CONECTOR RECTO PARA ENGARGOLADA TIPO CONTACTO CON SEGURO DE MEDIA VUELTA 125V, 15 A, 2P, 3H CON TIERRA FÍSICA. 125V, 15 A, 2P, 3H CON TIERRA FÍSICA. NERVADURA DE CONCRETO LOSA DE ENTREPISO CAT. No. 4729-C, MARCA LEVITON. CAT. No. 4720-C, MARCA LEVITON. CLAVIJA DE 1/2 VUELTA NERVADURA DE CONCRETO LOSA DE ENTREPISO

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
