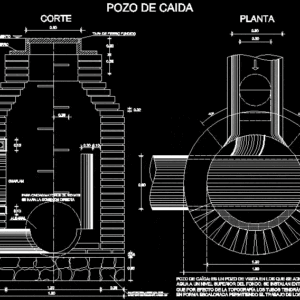

Manhole, seen in plant and cut, of a sewerage system – (Storm water)

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

plant, Greater than mts, cut, For greater falls of mts, The direct connection will be made, sewer, For falls, Sand cement mortar, Masonry seated with, Est, Vars from, chamfer, Iron broach, Pavement level, Fall well: it is a well of visit in which the entrance of the water is admitted a superior level of the bottom. Are installed between sections in which as a result of the topography the tubes will have outstanding slopes in a stepped form allowing the work of the sections that unite., Fall well, Cms, minimum, Cast iron cover, Flattened, cement, sewer, chamfer, Iron broach, Iron cap, Red wall wall, From cms, Concrete slab, Seated masonry, With mortar, Cement sand, cut, plant, manhole, Well: the wells of the name of the well are vertical drillings that serve to inspect the works of cleaning of the network. Are installed at the beginning of the are in the direction of changes of direction of to allow the connection of other bushes when there is need to change diameter. Maximum distances of meters must be located that are fixed by the cleaning system used. They are provided with a cover in the upper part leaving ventilation for the exhaust of the gases the admission of the air in the ducts. The free diameter at the top should be cms. To admit inspection. For this purpose are extended in the background are provided with steps embedded in its wall.

Raw text data extracted from CAD file:

PLANTA MAYORES DE 100 MTS 0.30 0.60 0.60 0.05 CORTE 0.60 0.10 0.30 1.20 0.30 1.80 0.28 PARA CAIDAS MAYORES DE 100 MTS SE HARA LA CONEXION DIRECTA ALBAÑAL PARA CAIDAS 0.10 0.20 0.15 0.20 0.25 0.20 0.30 0.60 MORTERO DE CEMENTO ARENA 1:5 MAMPOSTERIA ASENTADA CON EST.DE 1/4'' O 4 VARS. DE 3/8'' CHAFLAN BROCAL DE FIERRO NIVEL DEL PAVIMENTO POZO DE CAÍDA: ES UN POZO DE VISITA EN LOS QUE SE ADMITE LA ENTRADA DEL AGUA A UN NIVEL SUPERIOR DEL FONDO. SE INSTALAN ENTRE TRAMOS EN LOS QUE POR EFECTO DE LA TOPOGRAFÍA LOS TUBOS TENDRÁN PENDIENTES SUMAMENTE EN FORMA ESCALONADA PERMITIENDO EL TRABAJO DE LOS TRAMOS QUE UNE. POZO DE CAIDA 1.20 1.80 0.02 @ 20 CMS 1.75 MINIMO TAPA DE FIERRO FUNDIDO 40º 40º APLANADO DE CEMENTO 1.24 ALBAÑAL 0.30 0.28 CHAFLAN 1.80 0.60 BROCAL DE FIERRO TAPA DE FIERRO MURO DE TABIQUE ROJO DE 28 CMS 0.02 0.28 0.30 2.50 LOSA DE CONCRETO MAMPOSTERIA ASENTADA CON MORTERO DE CEMENTO ARENA 1:5 CORTE PLANTA 1.80 1.20 0.30 0.30 0.60 POZO DE VISITA POZO DE VISITA: LOS POZOS DE VISITA SU NOMBRE LO INDICA, SON PERFORACIONES VERTICALES QUE SIRVEN PARA INSPECCIONAR Y EJECUTAR LAS OBRAS DE LIMPIEZA DE LA RED. SE INSTALAN EN EL COMIENZO DE LAS ATARJEAS, O SEA EN LA "CABEZA DE ATARJEAS''; EN CAMBIOS DE DIRECCIÓN Y DE PENDIENTES; PARA PERMITIR LA CONEXIÓN DE OTRAS ATARJEAS O COLECTORES, CUANDO HAYA NECESIDAD DE CAMBIAR DIÁMETRO. SE DEBEN LOCALIZAR A DISTANCIAS MÁXIMAS DE 120 METROS O AQUELLAS QUE SE FIJEN POR EL SISTEMA DE LIMPIEZA EMPLEADO. VAN PROVISTOS DE UNA TAPA EN LA PARTE SUPERIOR DEJANDO VENTILACIÓN PARA EL ESCAPE DE LOS GASES Y LA ADMISIÓN DEL AIRE EN LOS CONDUCTOS. EL DIÁMETRO LIBRE EN LA PARTE SUPERIOR DEBE SER DE 60 CMS. PARA ADMITIR INSPECCIÓN. CON TAL OBJETO SE AMPLÍAN EN EL FONDO Y SE PROVEEN DE ESCALONES EMPOTRADOS EN SU PARED.

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Masonry, Other
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, Cut, DWG, kläranlage, manhole, plant, sewerage, storm, system, treatment plant, water
